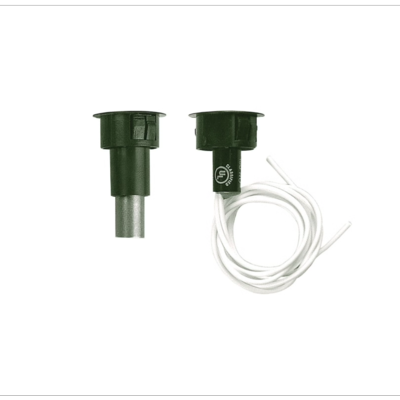

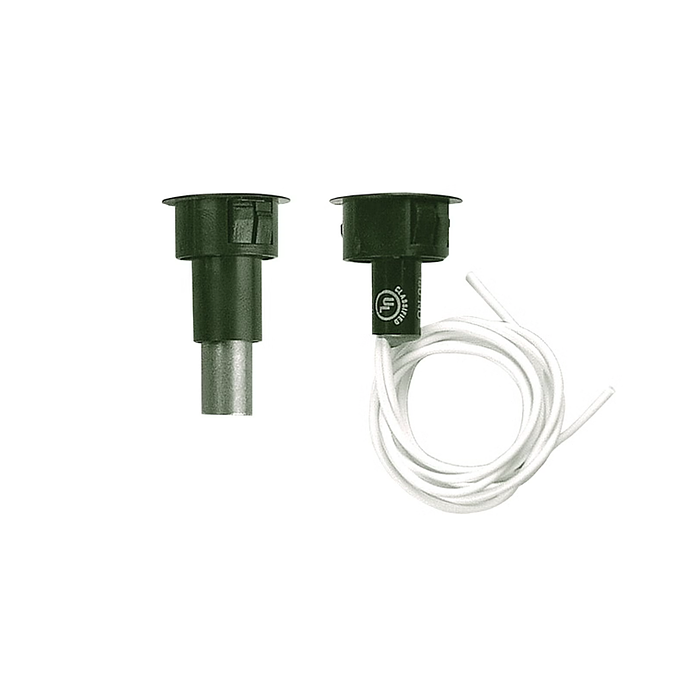

Securitron door position switch (dps) metal black

Securitron door position switch (dps) metal grey

Securitron DPS-M

Door Position Switches - Metal

Price: $28.00 /each

SKU: DPS-M

Choose Options Below

The DPA complements door position/door state detection with timed logic and relays that provide escalating alerts when a door is held, propped or unsecure after a defined time period.

  • Stock Item
  • Order in the next 18 hours 3 minutes to ship TOMORROW
  • FREE Shipping* *on orders over $99
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $28.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose SNDPS-M Finish:

Black Black
Grey Grey

Overview

This unit promotes safety and loss prevention at ancillary exits for healthcare, commercial and retail facilities. DPS-M Concealed Door Position Switch for Metal Doors Both components require drilling a 3/4" [19mm] diameter hole in the door and frame directly opposite one another. The large magnet is needed to overcome the shielding effect of a steel door. The DPS-M style is a Normally Closed switch (SPST). The distance depends on the door type and gap between the door and frame but is in the 1/2"-3/4" [12-18mm] range. Includes a magnetic switch and a cylindrical permanent magnet.
  • Mated magnetic switch and cylindrical magnetic contact
  • Recesses into door and frame
  • 3/4"[19mm] round installation, 15/16"[23.81mm] deep
  • Provides normally closed SPST switch
  • Works with door gap up to 3/4"[18mm]
  • Larger cylindrical magnet counters shielding effect of steel
  • MagnaCare® lifetime replacement, no-fault, no questions asked warranty
