Securitron EL-CEPT-10-BSP

Special Order Concealed Electrical Power Transfer with ElectroLynx Connection

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: EL-CEPT-10-BSP

Choose Options Below

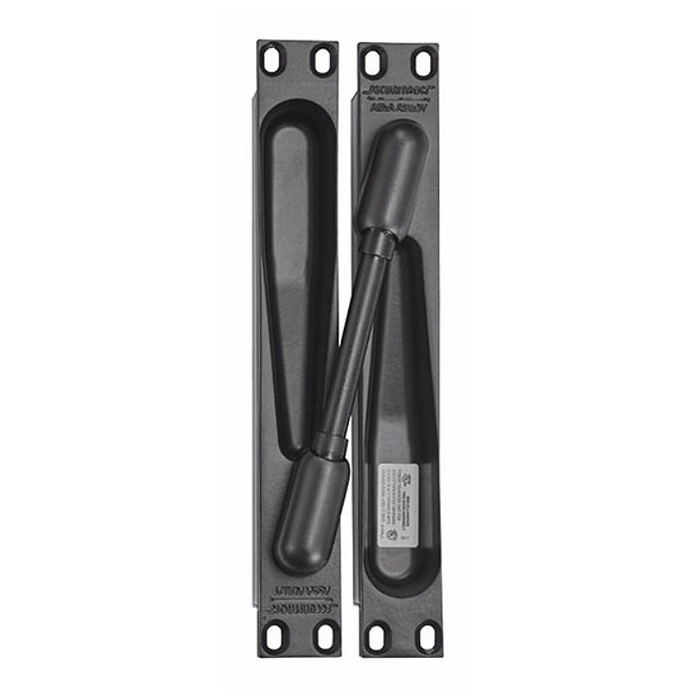

The Securitron CEPT-10 is a heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT) securely transfers power and data from the hinge side of the frame to electrified hardware on the door.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose Finish:

BSP- Black Powder Coat BSP- Black Powder Coat

Overview

Non-Stock Special Order with 2-3 week lead time
  • The unit is discreetly concealed between the frame and door when the door is closed.
  • Mortises into the edges of the door and frame.
  • For 1-3/4" thick doors.
  • CEPT-10 includes 8-22 AWG wires, max. 1A, plus 2-18 AWG wires, max. 5A  for higher current devices.
  • EL option includes ElectroLynx connectors for quick connect/disconnect.
  • All metal construction including back boxes
  • Compatible with butt hinges up to 6" .
  • Dimensions, CEPT Housing 9-1/16"L x 1-3/16"W x 1-7/16"D
  • 7/8" knockouts on back boxes accommodate EMF-type fittings.
  • MagnaCare® lifetime replacement, no fault warranty.
  • BSP Powdercoated Black finish.

Available Options: Choose Options Above

More Info

  • ANSI/UL 10C Listed, 3 hour rated.
  • ANSI/SDI-BHMA A250.13 (+/- 150 psi) Windstorm Listed.
  • Florida Building Code Approved.
  • Not for use with center hung or balanced doors, pocket or offset pivots or swing clear hinges.
