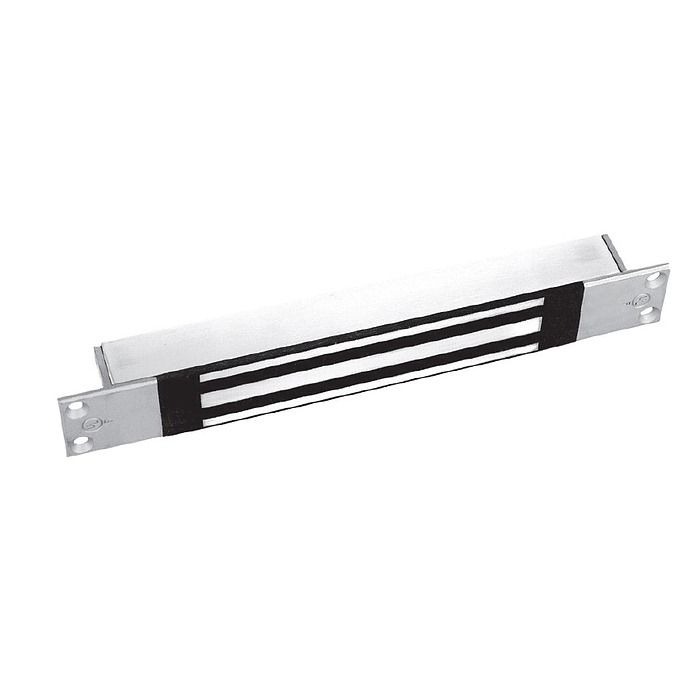

Securitron M34RBD

500lbs. Recessed Magnetic Lock with MBS and DPS

Price: $397.00 /each

SKU: M34RBD

The Securitron M34 Recessed Magnalock with 500 lbs. holding force and automatic dual voltage. Recommended for exterior/exterior applications. This model includes the Patented BondSTAT Magnetic Bond Sensor and an integrated Door Position Switch.

Because this is an electronic lock it is not subject to our standard return policy. We will not be able to accept a return for this item once electrical power has been applied to the item.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Shipping
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • Efficient, low power usage
  • Automatic dual-voltage—no field adjustment required
  • Fully sealed for weatherproof operations
  • Rust resistant—all ferrous metal surfaces plated for durability
  • Instant release circuit—no residual magnetism
  • Noise suppression with included MOV
  • Recessed for aesthetically appealing finish
  • 10 ft [3.05m] of jacketed, stranded conductor cable
  • Direct mount in door frame for strength and reliability
  • Replacement No Fault Warranty. MagnaCare® warranty replaces any product that Securitron manufactures, for any failure reason, for the life of the installation. HASSLE FREE, LIFETIME, NO FAULT.
  • Fully sealed electronics - tamper proof and weatherproof.
  • Holding Force: 500 lbs.
  • Current Draw and Voltage: 320mA at 12VDC; 170mA at 24VDC.
  • Operating Temperature: -40 to +140F [-40 to +60C].
  • Dimensions: Magnalock: 10-1/2"L x 1-1/8"D x 1-1/2"H, Strike: 6-3/8"L x 1/2"D x 1-7/16"H.
  • Finish-US32D/630 - Satin Stainless Steel.

Product at A Glance

MBS BondSTAT magnetic bond sensor monitors the surface of the armature plate and notifies the access control and/or alarm systems that a door is secured.
DPS Door Position Switch monitors whether the door is open or closed

More Info

  • UL 10C Listed.
  • ANSI/UL 294 Listed.
  • ANSI/BHMA A156.23, Grade 1; E08501-1000.
  • CSFM- California State Fire Marshal Approved.
SECURITRON MAGNALOCK CORPORATION warrants that it will replace at customer’s request, at any time for any reason, products manufactured and branded by SECURITRON since January 1, 1999. SECURITRON will use its best efforts to ship a replacement product by next day air freight at no cost to the customer within 24 hours of SECURITRON’s receipt of the defective product from customer. This MAGNACARE warranty also does not apply to custom, built to order, or non-catalog items, items made by others (such as batteries),  returns seeking replacement with anything other than the identical product, or products installed outside of the United States or Canada. See Securitron's web site, http://www.securitron.com for more information about the MagnaCare Warranty.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product
