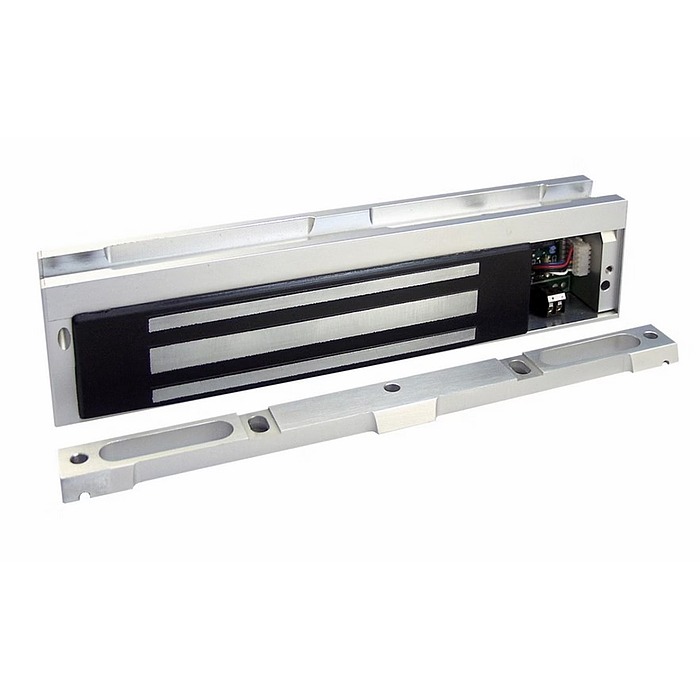

Securitron M38

600lbs. Bracketed Magnetic Lock

Price: $321.00 /each

SKU: M38

The Securitron M38 Bracketed Magnalock with 600 lbs. holding force and automatic dual voltage. For indoor use only.

Because this is an electronic lock it is not subject to our standard return policy. We will not be able to accept a return for this item once electrical power has been applied to the item.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 4 hours 47 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Overview


  • Automatic dual-voltage—no field adjustment required
  • Bracket mounting provides the easiest install for outswing doors.
  • Rust resistant—all ferrous metal surfaces plated for durability
  • Instant release circuit—no residual magnetism
  • Internal wire access chamber
  • Noise suppression with included MOV
  • 10 ft [3.05m] of jacketed, stranded conductor cable
  • Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
  • Replacement No Fault Warranty. MagnaCare® warranty replaces any product that Securitron manufactures, for any failure reason, for the life of the installation. HASSLE FREE, LIFETIME, NO FAULT.
  • Fully sealed electronics - tamper proof and weatherproof.
  • Holding Force: 600 lbs.
  • Current Draw and Voltage: 350mA at 12VDC; 170mA at 24VDC.
  • Operating Temperature: 32 to +110F [0 to +43C].
  • Dimensions: Magnalock: 10-1/2"L x 1-11/16"D x 2-1/2"H, Strike: 6-1/4"L x 1/2"D x 1-5/8"H
  • Finish-US32D/630 - Satin Stainless Steel.

More Info

  • UL 10C Listed.
  • ANSI/UL 294 Listed.
  • ANSI/BHMA A156.23, Grade 1; E08501-1000.
  • CSFM- California State Fire Marshal Approved.
SECURITRON MAGNALOCK CORPORATION warrants that it will replace at customer’s request, at any time for any reason, products manufactured and branded by SECURITRON since January 1, 1999. SECURITRON will use its best efforts to ship a replacement product by next day air freight at no cost to the customer within 24 hours of SECURITRON’s receipt of the defective product from customer. This MAGNACARE warranty also does not apply to custom, built to order, or non-catalog items, items made by others (such as batteries),  returns seeking replacement with anything other than the identical product, or products installed outside of the United States or Canada. See Securitron's web site, http://www.securitron.com for more information about the MagnaCare Warranty.
