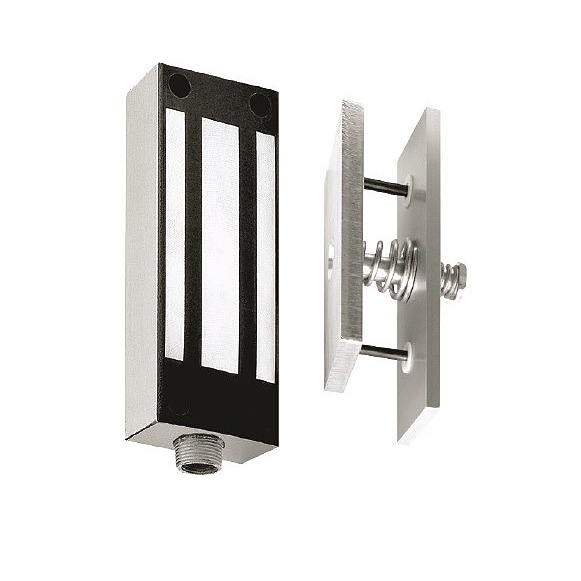

Securitron M62FG-SASM

Weatherproof Magnetic Face Drilled Gate Lock

Quick Product Details

  • SASM-Shock absorbing strike mount.
Price: $501.00 /each


The Securitron M62FG-SASM Magnalock with 1200 lbs. holding force and automatic dual voltage. The shock absorbing magnalock solution for outdoor gates.

Because this is an electronic lock it is not subject to our standard return policy. We will not be able to accept a return for this item once electrical power has been applied to the item.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 32 hours 25 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?


  • Face mount conduit fitting.
  • Fully sealed electronics - tamper proof and weatherproof.
  • Automatic dual voltage -12 or 24 VDC. No field adjustment required.
  • Holding Force: 1200 lbs.
  • Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC.
  • Operating Temperature: -40 to +140F [-40 to +60C].
  • Dimensions: Magnalock: 8"L x 1-3/4"D x 3"H, Strike: 6"L x 1/2"D x 2-3/4"H.
  • Finish-US32D/630 - Satin Stainless Steel.
  • Replacement No Fault Warranty. MagnaCare® warranty replaces any product that Securitron manufactures, for any failure reason, for the life of the installation. HASSLE FREE, LIFETIME, NO FAULT.

Product at A Glance

  • The M62FG-SASM is the only heavy duty Magnalock specifically designed to secure and protect gates.
  • Equipped with conduit fittings and a special shock absorbing strike mount.
  • This unique design dramatically prolongs the life of the lock, the gate and other hardware by controlling excessive impact between
    the strike plate and the magnet.

More Info

  • 10 ft.of jacketed, stranded conductor cable.
  • Instant release circuit - no residual magnetism.
  • UL 10C Listed.
  • ANSI/UL 294 Listed.
  • ANSI/BHMA A156.23, Grade 1; E08501-1000.
  • CSFM- California State Fire Marshal Approved.
  • MEA – City of New York Approved.
SECURITRON MAGNALOCK CORPORATION warrants that it will replace at customer’s request, at any time for any reason, products manufactured and branded by SECURITRON since January 1, 1999. SECURITRON will use its best efforts to ship a replacement product by next day air freight at no cost to the customer within 24 hours of SECURITRON’s receipt of the defective product from customer. This MAGNACARE warranty also does not apply to custom, built to order, or non-catalog items, items made by others (such as batteries),  returns seeking replacement with anything other than the identical product, or products installed outside of the United States or Canada. See Securitron's web site, http://www.securitron.com for more information about the MagnaCare Warranty.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
