Securitron M62FGBD

Special Order Weatherproof Magnetic Lock with BondSTAT Monitor & Door Position Switch

Price: $445.00 /each
Special Order non-stock item Requires 6 week lead time

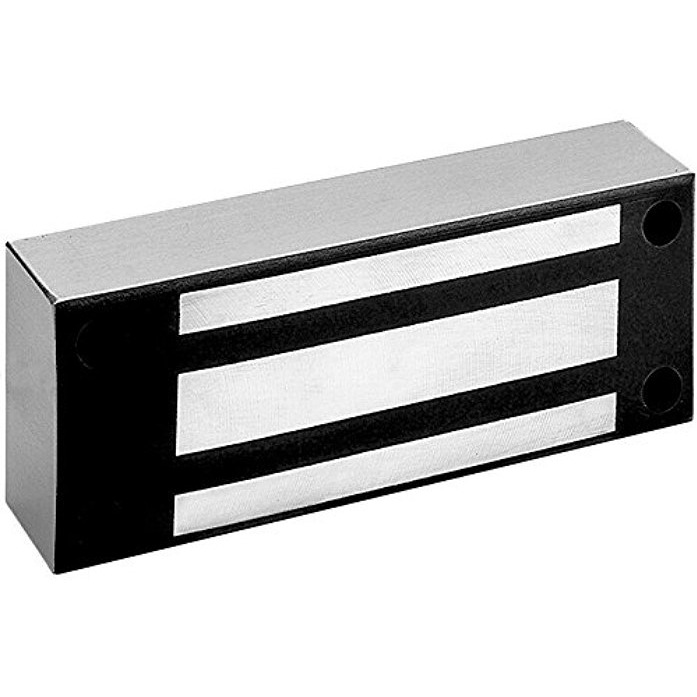

The Securitron M62FGBD Magnalock with 1200 lbs. holding force and automatic dual voltage. Drilled for face mounting and made for use on a gate. Recommended for exterior/exterior applications. With MBS and DPS

Because this is an electronic lock it is not subject to our standard return policy. We will not be able to accept a return for this item once electrical power has been applied to the item.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?


  • Fully sealed electronics - tamper proof and weatherproof.
  • Automatic dual voltage -12 or 24 VDC. No field adjustment required.
  • Holding Force: 1200 lbs.
  • Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC.
  • Operating Temperature: -40 to +140F [-40 to +60C].
  • Dimensions: Magnalock: 8"L x 1-3/4"D x 3"H, Strike: 6"L x 1/2"D x 2-3/4"H.
  • Finish-US32D/630 - Satin Stainless Steel.
  • Replacement No Fault Warranty. MagnaCare® warranty replaces any product that Securitron manufactures, for any failure reason, for the life of the installation. HASSLE FREE, LIFETIME, NO FAULT.

Product at A Glance

MBS BondSTAT magnetic bond sensor monitors the surface of the armature plate and notifies the access control and/or alarm systems that a door is secured.
DPS Door Position Switch monitors whether the door is open or closed
Drilling Drilled for face mounting position
Usage Made for Gate Installation

More Info

  • 10 ft.of jacketed, stranded conductor cable.
  • Instant release circuit - no residual magnetism.
  • UL 10C Listed.
  • ANSI/UL 294 Listed.
  • ANSI/BHMA A156.23, Grade 1; E08501-1000.
  • CSFM- California State Fire Marshal Approved.
  • MEA – City of New York Approved.
SECURITRON MAGNALOCK CORPORATION warrants that it will replace at customer’s request, at any time for any reason, products manufactured and branded by SECURITRON since January 1, 1999. SECURITRON will use its best efforts to ship a replacement product by next day air freight at no cost to the customer within 24 hours of SECURITRON’s receipt of the defective product from customer. This MAGNACARE warranty also does not apply to custom, built to order, or non-catalog items, items made by others (such as batteries),  returns seeking replacement with anything other than the identical product, or products installed outside of the United States or Canada. See Securitron's web site, http://www.securitron.com for more information about the MagnaCare Warranty.
