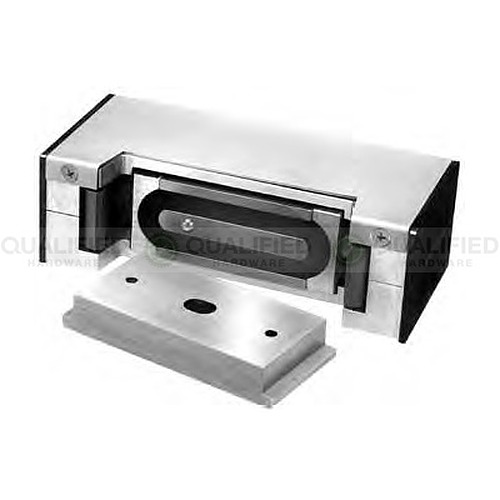

Securitron MM15

Special Order Interior Mag Lock

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: MM15

The securitron MM15 Mag lock has 4000 lbs. holding force, dual voltage, dual current Magnalock for interior or perimeter doors where ultra-high security and compact size are required.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time
  • Indoor use only.
  • MM15 is a hybrid design with two spring loaded, hardened steel jaws. In the event of a forced entry attempt, the mandibles rotate inward, clamping down and capturing the edges of the armature.
  • 4000 lbs. holding force provides an unmatched level of security.
  • Dual voltage (12/24) and dual current (AC/DC) operation.
  • Mounting plate provides easy and accurate installation.
  • Fail Safe, but can be installed with a battery backup power supply.
  • Dimensions: 6"L x 1-7/8"D x 2-3/4"H.

More Info

  • UL 10C Fire Rated, 1 hour.
  • Electrical: AC Current: 130 mA at 12 VAC; 250 mA at 24 VAC DC Current: 100 mA at 12 VDC; 200 mA at 24 VDC.
  • Operating Temperature: -40 to +140F [-40 to +60C] Indoor use only
