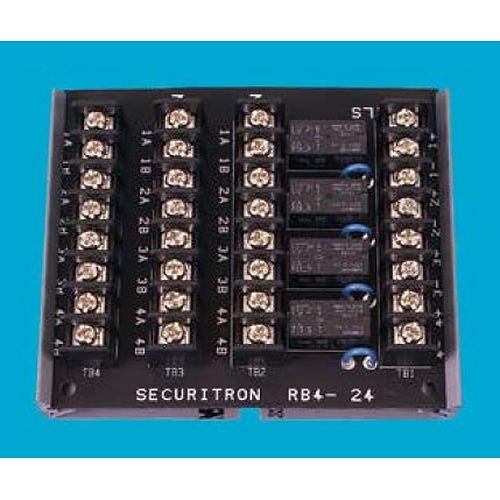

Securitron RB-4

Relay Board

Price: $93.00 /each

SKU: RB-4

Choose Options Below

The Securitron RB-4 relay board provides normally open or normally closed relays that can be interconnected. Ideal for interlock installations or wherever a basic relay board is used to trigger action, shunt alarms or report status from an access control system.

Due to differences in field conditions, this electronic component it is not subject to our standard return policy. We will not be able to accept a return for this item once electrical power has been applied to the item.

  • Stock Item
  • Order in the next 6 hours 23 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $93.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Voltage:

12VDC 12VDC
24VDC 24VDC

Overview

  • 4 DPDT relays with 2A contacts
  •  Individual coil connections —common negative or positive
  • Replaces socket mount relays
  • Dry contact connections via screw terminals
  • Relays have low current coils (13 mA at 12 VDC; 8 mA at 24 VDC)
  • Allows operation from most LED drive outputs
  • MagnaCare® lifetime replacement, no fault, no questions asked warranty

Available Options: Choose Options Above

  • Voltage:

    • 12VDC
    • 24VDC

Product at A Glance

  • Operating temperature -13 to +158F [-25 to +70C]
