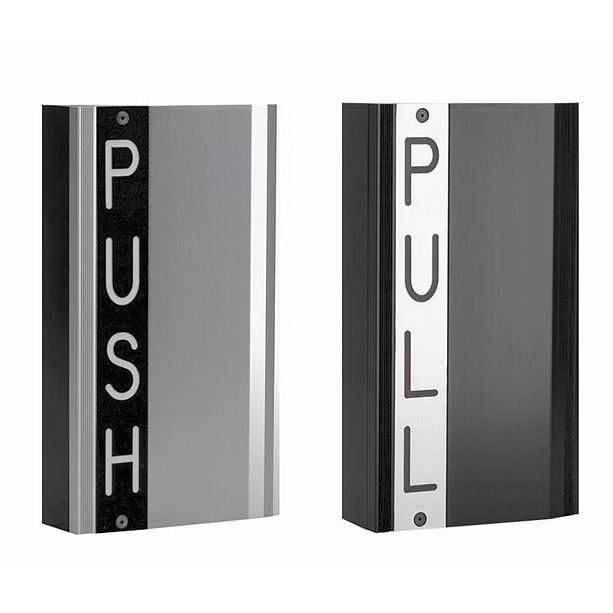

Securitron TSH

Touch Sense Handle

Quick Product Details

  • Replaces Standard Pull/Push Handle on Aluminum Storefront Doors
  • Used with: Electronic Latches
  • Limited Availability, fast moving product. Call 866-749-7661 for stock
Price: $362.00 /each

SKU: TSH

Choose Options Below

This Securitron TSH is made to replace a normal pull or push handle on an aluminum storefront door that uses an electronic latch. Available in Clear Anodized Aluminum or Black Anodized Aluminum.

  • Stock Item
  • Order in the next 14 hours 56 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $362.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Clear Anodized Aluminum
Black Anodized Aluminum +$16.00

Overview

Sized to conceal existing mounting holes, the TSH Touch Sense Handle replaces standard pulls on aluminum doors to allow electronic lock release for egress.
With flexible options, it works equally well on in-swing doors or as a push-open device for out-swing doors, offering a clean look on aluminum frame glass doors.
  • For use on any push, pull or swing-through door
  • Activates electronic release via DPST 2A rated relay whentouched to allow free egress
  • Backup push button
  • 16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
  • MagnaCare® lifetime replacement, no fault, no questions asked warranty

Available Options: Choose Options Above

Product at A Glance

Certifications
  • ANSI/UL 294 Listed
  • CSA-C22.2 No.205 Listed
  • CSFM—California State Fire Marshal Approved
  • CE: EN 50091-1, EN 61000- 6-2 Approved
Dimensions
  • 5"L x 2-1/8"D x 9"H
Electrical
  • 40 mA at rest; 25 mA releasing at 12 VDC or 24 VDC
  • 2A DPST relays
Operating Temperature
  • +32 to +110F [0 to +43C]
  • Indoor use only
