Select Hinges SL57-HD

Heavy Duty Surface Mount Continuous Hinge

Quick Product Details

  • Continuous Hinge
  • Surface mount
  • Heavy Duty
  • LIMITED AVAILABILITY,PLEASE CALL 866-749-7661 FOR MORE INFORMATION.
Price: $237.00 /each

SKU: SL57-HD

Choose Options Below

This Select SL57-HD is a Heavy duty continuous hinge in which the leaves are mounted to the surface of the frame and the door. This hinge can be used on doors made of any material in low, medium and heavy frequency applications, including abusive environments.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $237.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Size and Finish-RT:

83" Dark Bronze Anodized Aluminum
83" Black Anodized Aluminum +$12.00
95" Clear Anodized Aluminum +$7.00

Help Me Decide

83" for 7 foot doors.

95" for 8 foot doors

Overview


Quality and Safety:
  • Meets requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Lifetime warranty
Durability:
  • up to 200 lb., high-frequency
  • up to 400 lb., medium-frequency
  • up to 600 lb., low-frequency

Available Options: Choose Options Above

  • Size and Finish-RT: info icon

    • 83" Dark Bronze Anodized Aluminum
    • 83" Black Anodized Aluminum
    • 95" Clear Anodized Aluminum

Product at A Glance

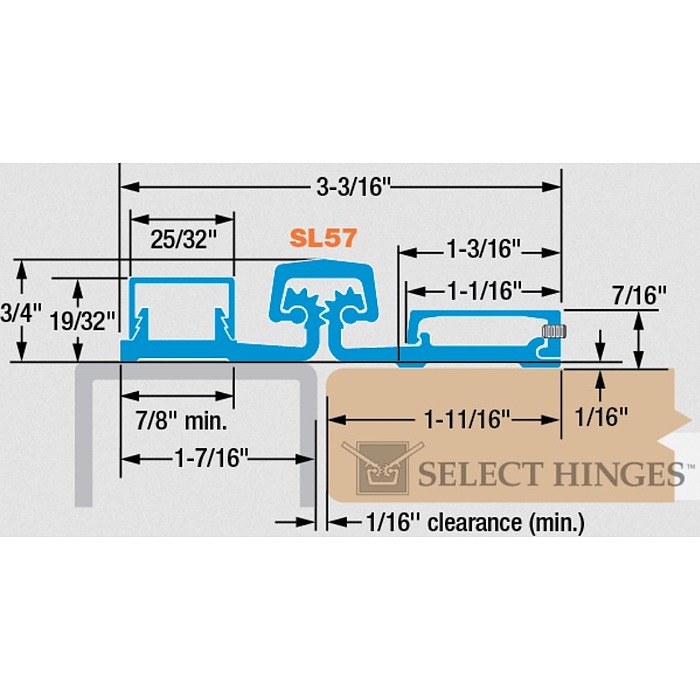

  • Leaves are mounted to the surface of the frame and the door
  • Can be used on doors of any material
  • Installed flush with the top edge of the door
  • Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes
  • Does not require door reinforcements
  • Any product modifications may void all warranties
Style Continuous hinge
Grade Heavy Duty
Mounting Surface Mount
Door Thickness 1-3/4"
Clearance 7/16" hinge side - plus standard lockside clearance
Inset 3/32"

More Info

SELECT geared continuous hinge has been tested in accordance with ANSI 250.4-1994 test procedure and acceptance criteria for physical endurance for steel doors and hardware and has surpassed 25,000,000 cycles during testing by an independent laboratory. On a door cycling 400,000 times per year, a SELECT hinge will be performing for over 62 years.

SELECT geared continuous hinges are built to handle abuse from high-traffic applications. They are applied to the surface on the edge of the frame and door. No machining or reinforcement is required.

The revolutionary SELECT geared continuous hinge puts an end to costly and irritating hinge failure problems, the most common cause of entrance failure.

On conventional hinges, opening and “kick-back” energy concentrate on a few inches of fastened reinforcing plate — with the top hinge handling 100% of the force.

Pinless SELECT hinges bond the door and frame into an integrated, sag-free unit. “Kick-back” energy dissipates along the entire length of the door and frame. (Compare this to a conventional hinge’s 4-1/2" to 5" at the top of the door and frame).

SELECT geared continuous hinges eliminate the gap between the door and frame, providing a weatherproof, rust-proof, tamper-proof barrier. When the door is closed, there are no accessible screws, bolts or pins.

SELECT SL57 geared continuous hinges are listed and tested by Underwriters Laboratories to meet the Positive and Negative pressure requirements of UL10B and UL10C, and are in accordance with UBC 7.2 (1997). SELECT SL24 geared continuous hinges are for use on swinging single fire doors (max. door opening of 4'x10') or pairs of fire doors (max. door opening of 8'x10'), including double egress, installed in masonry or drywall. SELECT SL24 geared continuous hinges are rated for up to 1-1/2 hours for wood composite and wood core type fire doors. A special patented process can be added to increase the fire rating to 3 hours (NO FIRE PINS OR STUDS REQUIRED) for hollow metal or steel covered composite type doors
