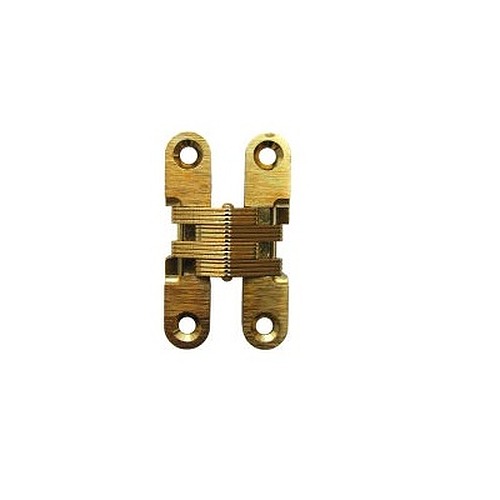

Soss 101C-US4

Light Duty 1-11/16 Invisible Hinge Wood Or Metal Applications

SKU: 101C-US4

Price: $20.00 /each

SOSS Invisible Hinges are designed to give dependable operation for years. Soss hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. Standard hinges are made of high strength plated steel and heavy duty zinc alloy castings.The installed hinge is firmly anchored in a deep, full mortise, which assists the screws in supporting the door, assuring a stronger, more rigid installation. Soss light duty model #101 is for use in wood or metal applications. 1-11/16" tall with a minimum material thickness of 1/2".

Have a question? Need help?
Call Us: 1-866-749-7661

  • In Stock!
  • Order in the next 18 hours 31 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?


  • Which hinge is the proper one for my application?  The first thing to consider is the thickness of the door itself, each hinge has a "minimum" thickness recommendation.The Soss 101C has a minimum material thickness of 1/2"
  • There is no "load-rating" per hinge for the SOSS Invisible Hinges. Take the width of the door along with the approximate weight to determine how many hinges are required to properly support the door. The general rule used to determine the number of hinges is: Every door should be provided with at least one hinge for every thirty inches in height or portion thereof; however, more hinges may be required per chart. With this in mind, consult the sizing chart in the Template and Instructions tab to determine the number of hinges you will need.
  • When closed, the SOSS Invisible Hinge cannot be seen or tampered with. When opened, the riveted hinge pin is non-removable.
  • SOSS® Invisible Hinges open a full 180° and are a single action hinge.
  • SOSS Model 101C hinges are carded and sold in 2/Pack.
  • Satin brass finish.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Light Duty 1-11/16 Invisible Hinge Wood Or Metal Applications
