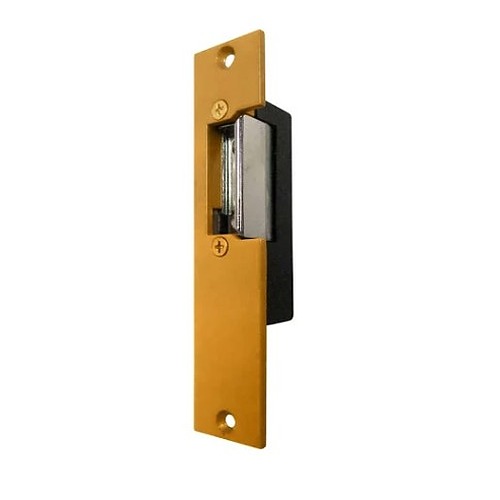

Trine Access Technology 2001/6-14VACDC

Adjustable Series Electric Strike

Quick Product Details

  • Life Cycles - 500,000
  • Holding Force - 900 lbs
Price: $76.00 /each

SKU: 2001/6-14VACDC

For use in new or replacement wood or metal jamb installations with locksets having up to 5/8" throw, based on 1/8" door gap.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 33 hours 46 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • For use in new or replacement wood or metal jamb installations with locksets having up to 5/8” throw, based on 1/8” door gap.
  • Face Plate 5-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16”
  •  Finish: Brass Powder Coated

Product at A Glance

  • Fail secure standard, requires power to be applied to unlock the strike.
  • Allows adjustment for wider latch bolts & poorly aligned doors & locksets.
  • 1/8” Horizontal Latch Adjustment.
  • Releases Under Slight Door Pre-Load.
  • 500,000 Life Cycles -- Holding Force - 900 lbs.
  • Solid Cast Latch - Chrome Plated.
  • Non Handed Operation.
  • Screw Terminals - Quick Connection.
  • 6-14VAC 0.44 - 1.10 8.5 Buzz Intermittent
  • 6-14VDC 0.70 - 1.60 8.5 Silent Continuous

More Info

  • Allows adjustment for wider latch bolts & poorly aligned doors & locksets
  •  1/8” Horizontal Latch Adjustment
  •  Releases Under Slight Door Preload
  •  Life Cycles - 500,000
  •  Holding Force - 900 lbs
  •  Solid Cast Latch - Chrome Plated
  •  Non-Handed Operation
