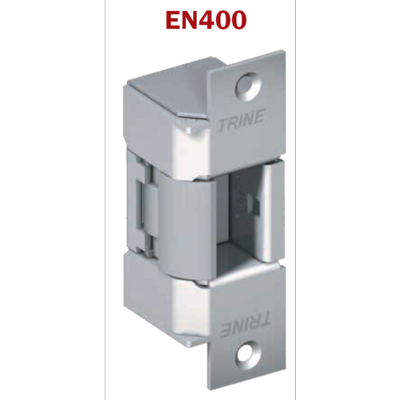

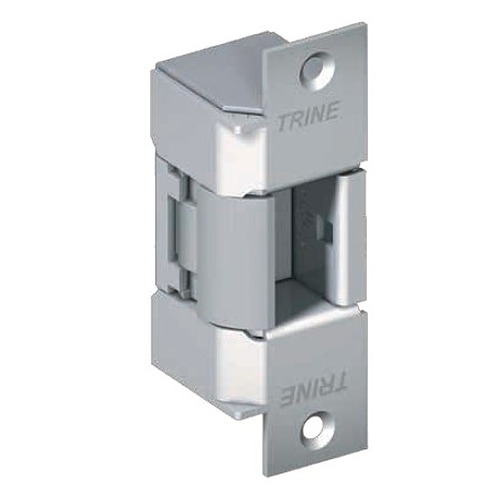

Trine Access Technology EN400-LBSM-24VDC-32D

Special Order Trine Strike for Cylindrical and Mortise Locks

Quick Product Details

  • Grade 1 rated to 1,000,000+ cycles
  • Handed, must specify handing when ordering
  • Latch Bolt and Strike Monitoring Included
Get a Quote
Special Order non-stock item Requires 6 week lead time


Choose Options Below

Indoor/Outdoor commercial electric strike. For use on wood and metal frames with mortised and cylindrical locks. Includes Latch Bolt Strike Monitoring

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Voltage:


Choose Handing:

Left Hand (LH) Left Hand (LH)
Right Hand (RH) Right Hand (RH)


 Special order non-stock item with 6 week lead time
  • 12VAC requires 0.7W Current and 4.5 Ohms
  • 24VAC requires 0.37W Current and 18.0 Ohms
  • 12VDC requires 0.28W Current and 43.0 Ohms
  • 24VDC requires 0.15W Current and 164.0 Ohms

Available Options: Choose Options Above

  • Voltage:

    • 24VDC
    • 12VDC
    • 24VDC
    • 12VAC
    • 24VAC
  • Handing:

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

Superior Strength Heavy Duty 2,000+ lbs UL Tested
Superior Life Durability of 1,000,000+ cycle tested
Superior Application Outdoor UL(R) rating allows the strike to be used anywhere - especially good for gates.
Grade 1 Electric Strike Contains a one piece locking mechanism with one Solenoid, less parts mean less problems.
Versatile Great for all high humidity environments like at marinas and pools. The go anywhere strike!
UL Listed UL(R) Listed 10C - Fire-rated - Class A, 3-hour, single swing door, UL(R) Listed 1034 - Indoor/Outdoor Burglary Resistant, NYC MEA 79-01-E
Handing Product is handed LH and RH must be specified when ordering
