Von Duprin 050251-00

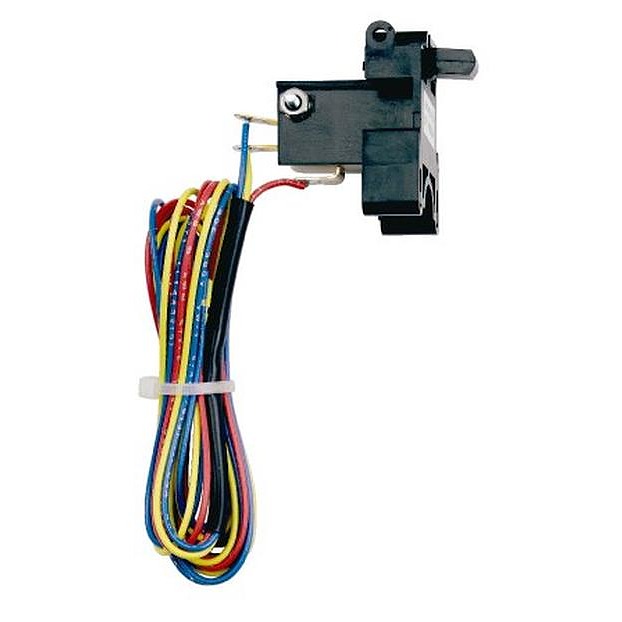

RX (request to exit) Switch Kit

Quick Product Details

  • RX Switch Kit
  • Used With: 98/99/33A/22 series exit devices
Price: $174.00 /each

SKU: 050251-00

This Von Duprin 050251 Request to Exit switch kit feature is used to signal the use of an opening from the push side. It is use with 98/99/33A/22 series exit devices.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Product at A Glance

  • Field install
  • RX (request to exit) Signal Switch feature is used to signal the use of an opening from the push side. When the push pad is depressed, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the touch bar.
  • Switch rated 0.5 amperes @ 24VAC/DC resistive
  • The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply
  • A continuous current electric transfer must be used for transferring power from the frame to the door
  • The RX switch option should not be used to control a load, but as a signalling switch (0.5 amps. resistive maximum).
Style Request to Exit Switch kit
Used With Von Duprin 98/99/33A /22 exit devices

More Info

This switch kit is designed to signal the use of the exit device when the push-pad is depressed. It is compatible with Von Duprin 98/99 and 33A series exit devices.
