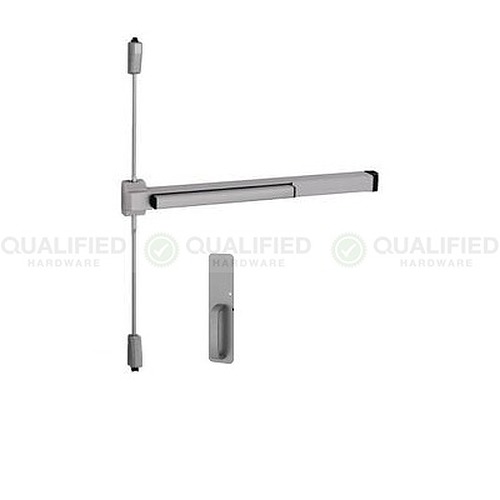

Von Duprin 2227DT

Surface Mounted Vertical Rod Exit Device with Dummy Pull Trim

Quick Product Details

  • Vertical Rod Exit Device
  • With Dummy pull trim, pull when dogged.
  • Surface Mounted
SKU: 2227DT

Price: $517.00 /each

Choose Options Below

This Von Duprin 2227DT is a vertical rod exit device that is UL listed for panic exit hardware and it meets ANSI 156.3-2001 Grade 1 requirements. It is a surface mounting device with dummy pull trim,pull when dogged

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $517.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$7.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Finish:

SP28 - Sprayed Aluminum SP28 - Sprayed Aluminum
SP313 - Sprayed Dark Bronze SP313 - Sprayed Dark Bronze

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

Product at A Glance

  • For all types of single and double doors with mullion
  • Covers stock hollow metal doors with 86 or 161 cutouts
Style Vertical Rod exit device
Mounting Surface mounted
Trim Dummy Pull Trim:
- pull when dogged.
Handing Non-handed
Door Thickness 1-3/4" to 2-1/4"
Door Height 7' (standard) extension rods available for door heights up to 10'
Dogging Feature Hex key dogging standard on non-fire-rated devices
Strike Top: 299 - dull black finish
- Bottom: 248L4 & 304L - unfinished
Latch Bolt Deadlocking, anti-friction top and bottom bolt
Throw 5/8"
Door Undercut 1/4" from finished floor recommended, 3/4" maximum or 1/8" from threshold
Vertical Rods 1/2" square tubing
Measurement from Finished Floor to Centerline of Device 39-13/16"
Stile Minimum 3-5/8" wide
