Von Duprin 2227L

Surface Mounted Vertical Rod Exit Device with Lever Trim

Quick Product Details

  • Vertical Rod Exit Device
  • With Lever Trim
  • Surface Mounted
Price: $578.00 /each

SKU: 2227L

Choose Options Below

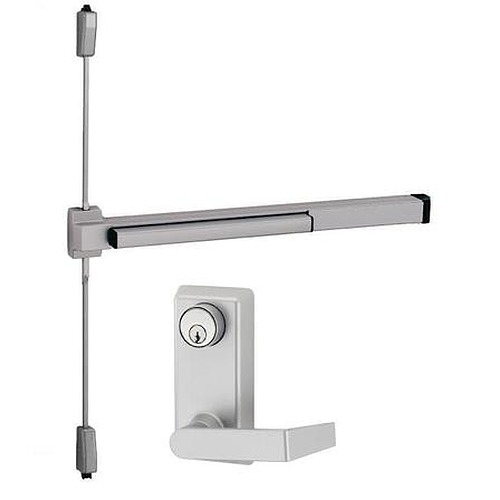

This Von Duprin 2227L is a surface mounted vertical rod exit device with the lever trim in which a key locks and unlocks the lever. This product is supplied for standard doors that are 7' high and extension rods are available for doors up to 10' in height.

  • In Stock!
  • Order in the next 17 hours 30 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $578.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Fire Rated:

UL Fire Label Exit Device +$128.00
Non Fire Rated

Help Me Decide

  • Fire Rated Exit Device or Door - Constructed to provide a specific degree of fire protection. It is typically rated for a period of time as resistant to penetration by fire.

Choose Finish :

SP28 - Sprayed Aluminum (628) SP28 - Sprayed Aluminum (628)
SP313 - Sprayed Dark Bronze (695) SP313 - Sprayed Dark Bronze (695)

Choose Rail Size:

3 FT
4 FT +$6.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Cylinder 1-1/4" Mortise:

1-1/4 1-1/4" Satin Chrome Mortise Cylinder Schlage C Keyway +$11.00
No Mortise cylinder needed

Help Me Decide

  • Mortise cylinder includes 2 keys.

Choose VD Alarm Kit 22:

No alarm Kit
3Ft  Alarm Kit + $310.00 3Ft Alarm Kit +$310.00
4Ft Alarm kit + $310.00 4Ft Alarm kit +$310.00

Help Me Decide

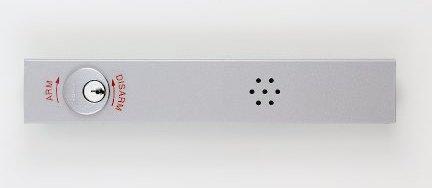

  • Von Duprin 22ALK alarm kit for 22 series exit devices.
  • When the touchbar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated
  • Requires a 1-1/4" mortise cylinder to arm/disarm, not included.
  • The unit operates on one standard 9-volt alkaline battery
  • When the ALK is used, standard dogging is removed.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

  • Fire Rated: info icon

    • UL Fire Label Exit Device
    • Non Fire Rated
  • Finish :

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Cylinder 1-1/4" Mortise: info icon

    • 1-1/4" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise cylinder needed
  • VD Alarm Kit 22: info icon

    • No alarm Kit
    • 3Ft Alarm Kit
    • 4Ft Alarm kit

Product at A Glance

  • For all types of single and double doors with mullion
  • 1-1/4” mortise cylinder not included
  • Covers stock hollow metal doors with 86 or 161 cutouts
Style Vertical Rod exit device
Mounting Surface mounted
Trim Lever trim - 230L:
- Key locks and unlocks lever
Handing Non-handed
Door Thickness 1-3/4" and 2-1/4"
Door Height 7' (standard) extension rods available for door heights up to 10'
Dogging Feature Hex key dogging standard on non-fire-rated devices
Strike - Fire-rated:
- Top: 299F - dull black finish
- Bottom: 304L - unfinished
- Non-fire-rated:
- Top: 299 - dull black finish
- Bottom: 248L4 & 304L - unfinished
Latch Bolt Deadlocking, anti-friction top and bottom bolt
Throw 5/8"
Door Undercut 1/4" from finished floor recommended, 3/4" maximum or 1/8" from threshold
Vertical Rods 1/2" square tubing
Measurement from Finished Floor to Centerline of Device 39-13/16"
Stile Minimum 3-5/8" wide
