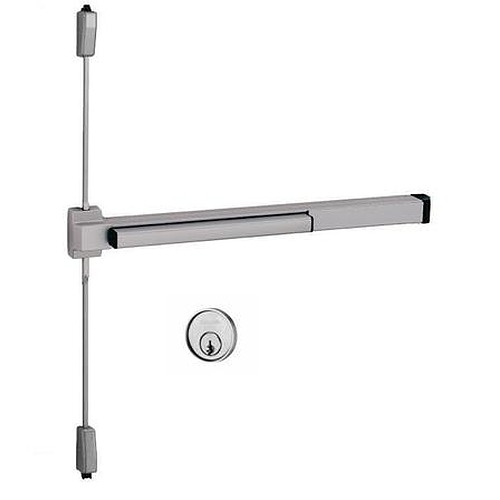

Von Duprin 2227NL-OP

Surface Mounted Vertical Rod Exit Device with Night Latch Cylinder

Quick Product Details

  • Vertical Rod Exit Device
  • With Night Latch Function Trim
  • Surface Mounted
Price: $716.00 /each

SKU: 2227NL-OP

Choose Options Below

This Von Duprin 2227NL-OP is a standard duty, surface mount, vertical rod exit device with a night latch cylinder trim that requires an optional pull. It is available with sprayed aluminum or sprayed dark bronze finish to complement the decor of your application.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $716.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish :

SP28 - Sprayed Aluminum (628) SP28 - Sprayed Aluminum (628)
SP313 - Sprayed Dark Bronze (695) SP313 - Sprayed Dark Bronze (695)

Choose Rail Size:

3 FT
4 FT +$14.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Fire Rated:

UL Fire Label Exit Device (2227-F) +$189.00
Non Fire Rated

Help Me Decide

  • Fire Rated Exit Device or Door - Constructed to provide a specific degree of fire protection. It is typically rated for a period of time as resistant to penetration by fire.



Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $14.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$14.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

  • Finish :

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Fire Rated: info icon

    • UL Fire Label Exit Device (2227-F)
    • Non Fire Rated
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed

Product at A Glance

  • For all types of single and double doors with mullion
  • Rim cylinder not included
  • Covers stock hollow metal doors with 86 or 161 cutouts
Style Vertical Rod exit device
Mounting Surface mounted
Trim Night latch cylinder -110NL:
- Key retracts latch
- Optional pull required
Handing Non-handed
Door Thickness 1-3/4" and 2-1/4"
Door Height 7' (standard) extension rods available for door heights up to 10'
Dogging Feature Hex key dogging standard on non-fire-rated devices
Strike - Fire-rated:
- Top: 299F - dull black finish
- Bottom: 304L - unfinished
- Non-fire-rated:
- Top: 299 - dull black finish
- Bottom: 248L4 & 304L - unfinished
Latch Bolt Deadlocking, anti-friction top and bottom bolt
Throw 5/8"
Door Undercut 1/4" from finished floor recommended, 3/4" maximum or 1/8" from threshold
Vertical Rods 1/2" square tubing
Measurement from Finished Floor to Centerline of Device 39-13/16"
Stile Minimum 3-5/8" wide
