Von Duprin 2227NL

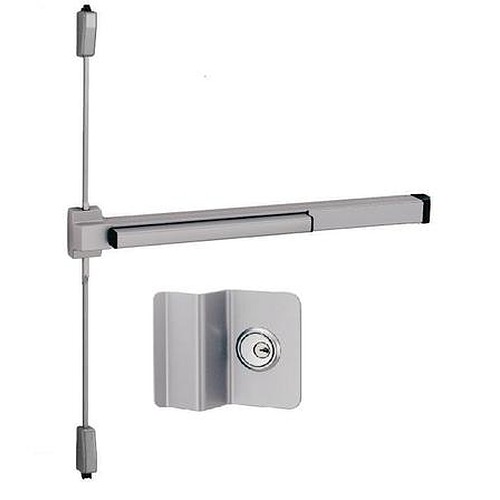

Surface Mounted Vertical Rod Exit Device with Night Latch Trim

Quick Product Details

  • Vertical Rod Exit Device
  • With Night Latch Function Trim
  • Surface Mounted
SKU: 2227NL

Price: $524.00 /each

Choose Options Below

This Von Duprin 2227NL is an economical alternative vertical rod exit device with the night latch function trim. Suitable for all types of single and double doors with a mullion. All Von Duprin products are backed by a 3-4 year warranty against defect.

  • In Stock!
  • Order in the next 6 hours 14 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $524.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Choose Rail Size:

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Fire Rated:

Help Me Decide

  • Fire Rated Exit Device or Door - Constructed to provide a specific degree of fire protection. It is typically rated for a period of time as resistant to penetration by fire.



Choose Cylinder Rim:

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty



Available Options: Choose Options Above

  • Finish:

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Fire Rated: info icon

    • UL Fire Label Exit Device (2227-F)
    • Non Fire Rated
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed

Product at A Glance

  • For all types of single and double doors with mullion
  • Rim cylinder not included
  • Covers stock hollow metal doors with 86 or 161 cutouts
Style Vertical Rod exit device
Mounting Surface mounted
Trim Night latch -210NL:
- Key retracts latch
Handing Non-handed
Door Thickness 1-3/4" and 2-1/4"
Door Height 7' (standard) extension rods available for door heights up to 10'
Dogging Feature Hex key dogging standard on non-fire-rated devices
Strike - Fire-rated:
- Top: 299F - dull black finish
- Bottom: 304L - unfinished
- Non-fire-rated:
- Top: 299 - dull black finish
- Bottom: 248L4 & 304L - unfinished
Latch Bolt Deadlocking, anti-friction top and bottom bolt
Throw 5/8"
Door Undercut 1/4" from finished floor recommended, 3/4" maximum or 1/8" from threshold
Vertical Rods 1/2" square tubing
Measurement from Finished Floor to Centerline of Device 39-13/16"
Stile Minimum 3-5/8" wide

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Surface Mounted Vertical Rod Exit Device with Night Latch Trim
