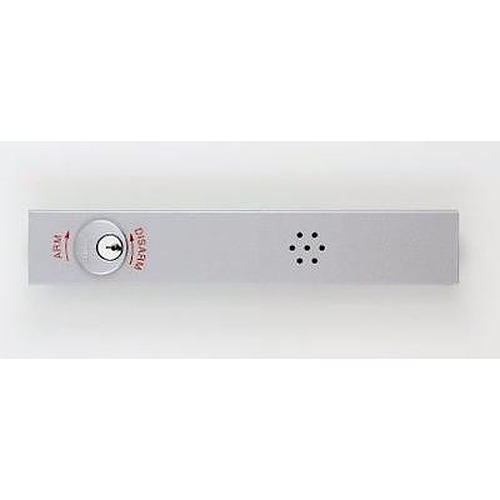

Von Duprin 22ALK

Alarm Kit for 22 series Exit Devices

Quick Product Details

  • Alarm Kit
  • Used With: 22 series exit devices
Price: $483.00 /each


Choose Options Below

This Von Duprin 22ALK is an alarm kit for 22 series exit devices. An alarm will sound when the touchbar is depressed, signaling that the opening has been violated.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $483.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

SP28 - Sprayed Aluminum SP28 - Sprayed Aluminum
SP313 - Sprayed Dark Bronze SP313 - Sprayed Dark Bronze

Choose Rail Size:

3ft Rail
4ft Rail


  • 22 ALK, Alarm Kit for 22 series Exit Devices

Available Options: Choose Options Above

Product at A Glance

  • When the touchbar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated.
  • The alarm kit can be armed or disarmed by key
  • The horn is rated at 85 decibels.
  • Key switch uses a standard 1-1/4” mortise cylinder with a straight cam. Cylinder not included
  • Operates on one 9-volt alkaline battery.
  • The horn will emit an intermittent low battery alert signal.
  • Standard Hex Key dogging not available when using an ALK
  • Alarm kits are furnished standard with a RX-request to exit switch.
  • The ALK can also be hard wired and powered using a power supply.
  • The ALK includes a standard decal reading "EMERGENCY EXIT ONLY. ALARM WILL SOUND" for application on the door, the standard decal is white with red lettering.
Alarm Kit The assembly includes both a 24VDC Input and External Inhibit standard. The External Inhibit provides remote arming and disarming.
Used With Von Duprin 22 series exit devices

More Info

This alarm kit is used to signal authority of a violation to the opening. The alarm will sound when the touchbar is depressed. The alarm kit can be activated or deactivated by using a key. This alarm is powered by one 9 volt alkaline battery and when the battery is low a signal will sound.
