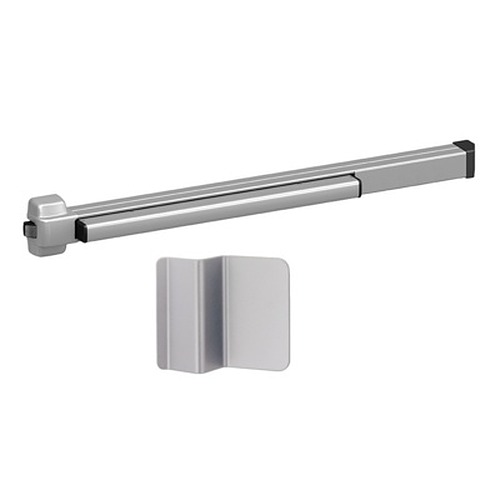

Von Duprin 22DT

Rim Exit Device with Dummy Pull Trim

Quick Product Details

  • Rim Exit Device
  • Dummy Pull Trim
  • Standard Duty
Price: $396.00 /each

SKU: 22DT

Choose Options Below

This Von Duprin 22DT rim exit device includes a dummy pull trim. Trim can be pulled when the device is dogged down. There is no outside operation and no cylinder is required. The latchbolt is deadlocking with a 3/4" throw.

  • Stock Item
  • Order in the next 14 hours 51 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $396.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish :

SP28 - Sprayed Aluminum (628) SP28 - Sprayed Aluminum (628)
SP313 - Sprayed Dark Bronze (695) SP313 - Sprayed Dark Bronze (695)

Choose Rail Size:

3 FT
4 FT +$14.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Covers stock hollow metal doors with 161 cutouts
  • For all types of single and double doors with mullion - 8’ x 8’ double doors with 9954 or 9854 mullion
Style Rim exit device
Trim Dummy Pull Trim 210DT:
- Pull when dogged
- No outside operation
- No cylinder
Handing Non-handed
Door Thickness 1-3/4"
Dogging Feature Hex key dogging standard
Strike - Non-fire rated: 299 ( black - finish)
- Fire rated: 299F (black - finish) single doors. 499F (black - finish) double doors with 9954 or 9854 mullion
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-1/4"
- Pushbar depressed: 3"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
Stile Minimum width 4-3/4"

More Info


The Von Duprin 22DT rim exit device has the capacity to be dogged down using a hex key. When this device is dogged down to allow for free egress, the accompanying dummy pull trim is used to open the door. There is no outside operation when using this device and no cylinder is required. This exit device can be used on all types of single doors and double doors with a mullion.
