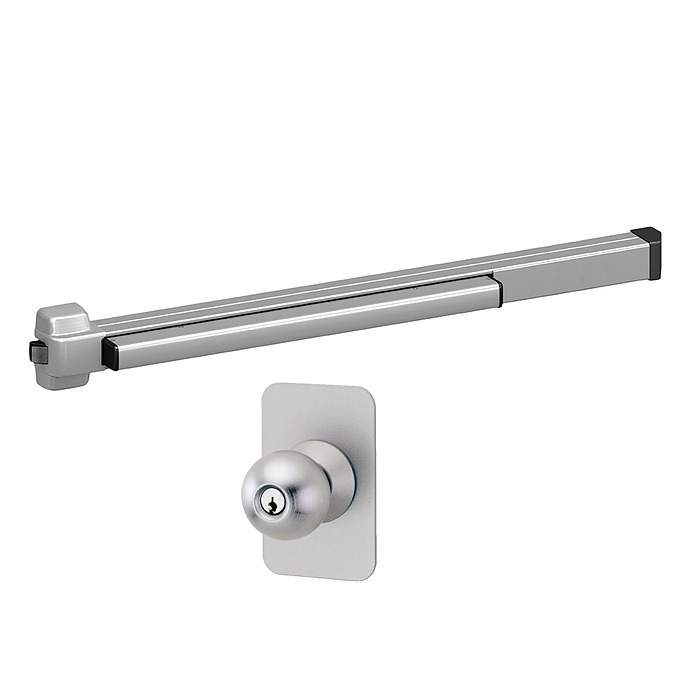

Von Duprin 22K

Rim Exit Device with Knob Trim

Quick Product Details

  • Rim Exit Device
  • Knob Trim
Price: $538.00 /each

SKU: 22K

Choose Options Below

This Von Duprin 22K is a knob trim, rim exit device for standard duty applications on single and double doors with mullion. This product is non-handed to be used on right hand reverse and left hand reverse applications and it is supplied standard with hex-key dogging.

  • Stock Item
  • Order in the next 32 hours 48 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $538.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish :

SP28 - Sprayed Aluminum (628) SP28 - Sprayed Aluminum (628)
SP313 - Sprayed Dark Bronze (695) SP313 - Sprayed Dark Bronze (695)

Choose Rail Size:

3 FT
4 FT +$14.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Fire Rated:

UL Fire Label Exit Device +$93.00
Non Fire Rated

Help Me Decide

  • Fire Rated Exit Device or Door - Constructed to provide a specific degree of fire protection. It is typically rated for a period of time as resistant to penetration by fire.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

  • Finish :

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Fire Rated: info icon

    • UL Fire Label Exit Device
    • Non Fire Rated

Product at A Glance

  • Covers stock hollow metal doors with 161 cutouts
  • For all types of single and double doors with mullion - 8’ x 8’ double doors with 9954 or 9854 mullion
Style Rim exit device
Trim Knob trim 210K:
- Key locks and unlocks knob
Handing Non-handed
Door Thickness 1-3/4" Standard
Dogging Feature Hex key dogging standard on non-fire rated devices
Strike - Non-fire rated: 299 ( black - finish)
- Fire rated: 299F (black - finish) single doors. 499F (black - finish) double doors with 9954 or 9854 mullion
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-1/4"
- Pushbar depressed: 3"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
Stile Minimum width 4-3/4"

More Info


Exit devices are generally used on rear doors which do not require the ability to operate this door from the outside. However, when the owner or other personnel do need access from the outside, this knob trim will provide the perfect solution. It will only enable entry from the outside with the use of a key, which will restrict use only to those with a key in their possession.
