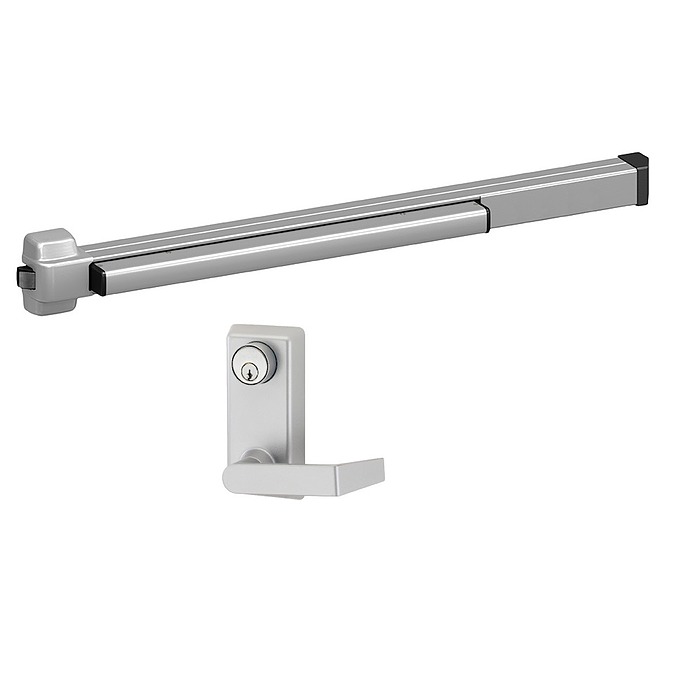

Von Duprin 22L

Rim Exit Device with Lever Trim

Quick Product Details

  • Rim Exit Device
  • With Lever Trim
SKU: 22L

Price: $430.00 /each

Choose Options Below

This Von Duprin 22L is a great, lever trim, rim exit device ideal for use on all types of single and double doors with mullion. It is UL listed for panic hardware and it is available in a UL fire rated version wherever it is necessary.

  • In Stock!
  • Order in the next 6 hours 1 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $430.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish :

Choose Rail Size:

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Cylinder 1-1/4" Mortise:

Help Me Decide

  • Mortise cylinder includes 2 keys.

Choose Fire Rated:

Help Me Decide

  • Fire Rated Exit Device or Door - Constructed to provide a specific degree of fire protection. It is typically rated for a period of time as resistant to penetration by fire.

Choose VD Alarm Kit 22:

Need Help Deciding?

Help Me Decide

  • Von Duprin 22ALK alarm kit for 22 series exit devices.
  • When the touchbar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated
  • Requires a 1-1/4" mortise cylinder to arm/disarm, not included.
  • The unit operates on one standard 9-volt alkaline battery
  • When the ALK is used, standard dogging is removed.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

  • Finish :

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Cylinder 1-1/4" Mortise: info icon

    • 1-1/4" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise cylinder needed
  • Fire Rated: info icon

    • UL Fire Label Exit Device
    • Non Fire Rated
  • VD Alarm Kit 22: info icon

    • No alarm Kit
    • 3Ft Alarm Kit
    • 4Ft Alarm kit

Product at A Glance

  • Covers stock hollow metal doors with 161 cutouts
  • For all types of single and double doors with mullion - 8’ x 8’ double doors with 9954 or 9854 mullion
Style Rim exit device
Trim Lever trim 230L:
- Key locks and unlocks lever
Handing Non-handed
Door Thickness 1-3/4" Standard or 2-1/4"
Dogging Feature Hex key dogging standard on non-fire-rated devices
Strike - Non-fire rated: 299 ( black - finish)
- Fire rated: 299F (black - finish) single doors. 499F (black - finish) double doors with 9954 or 9854 mullion
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-1/4"
- Pushbar depressed: 3"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
Stile Minimum width 4-3/4"

Exit devices are a crucial part of a building’s construction, since they will determine the quality of the door openings and the efficiency of the traffic flow. Von Duprin offers a large variety of exit devices that will greatly enhance the overall  standards of your facility. This rim exit device includes a lever trim for the outside operation of the door.
