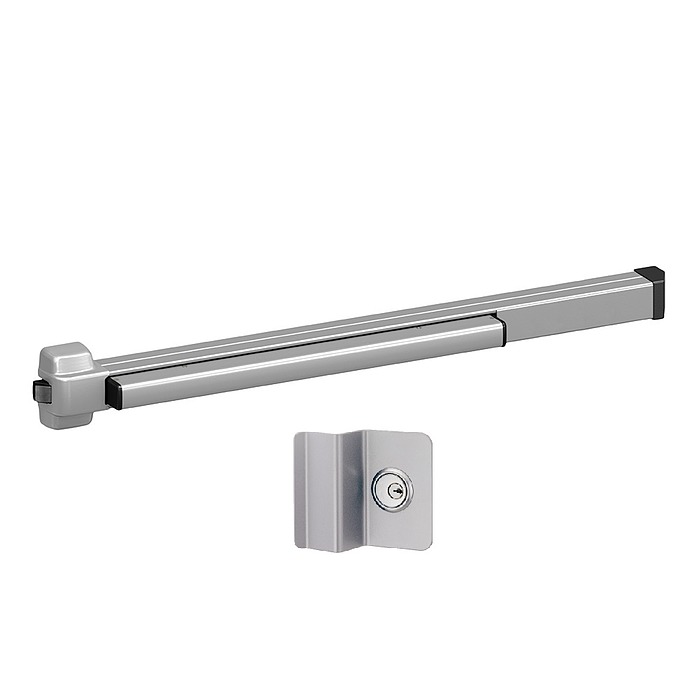

Von Duprin 22NL

Rim Exit Device with Night Latch Trim

Quick Product Details

  • Rim Exit Device
  • With Night Latch Trim
SKU: 22NL

Price: $322.00 /each

Choose Options Below

This Von Duprin 22NL is a non-handed, standard duty night latch trim exit device for standard door thickness of 1-3/4" or 2-1/4". When in the neutral position, the push-bar projects 3-1/4", and when it is depressed it will project 3".

  • In Stock!
  • Order in the next 6 hours 16 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $322.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

SP28 - Sprayed Aluminum SP28 - Sprayed Aluminum
SP313 - Sprayed Dark Bronze SP313 - Sprayed Dark Bronze

Choose Rail Size:

3 FT
4 FT +$7.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $12.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$12.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Choose Fire Rated:

UL Fire Label Exit Device +$70.00
Non Fire Rated

Help Me Decide

  • Fire Rated Exit Device or Door - Constructed to provide a specific degree of fire protection. It is typically rated for a period of time as resistant to penetration by fire.

Choose VD Alarm Kit 22:

Need Help Deciding?
No alarm Kit
3Ft  Alarm Kit + $308.00 3Ft Alarm Kit +$308.00
4Ft Alarm kit + $308.00 4Ft Alarm kit +$308.00

Help Me Decide

  • Von Duprin 22ALK alarm kit for 22 series exit devices.
  • When the touchbar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated
  • Requires a 1-1/4" mortise cylinder to arm/disarm, not included.
  • The unit operates on one standard 9-volt alkaline battery
  • When the ALK is used, standard dogging is removed.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

  • Finish:

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed
  • Fire Rated: info icon

    • UL Fire Label Exit Device
    • Non Fire Rated
  • VD Alarm Kit 22: info icon

    • No alarm Kit
    • 3Ft Alarm Kit
    • 4Ft Alarm kit

Product at A Glance

  • Covers stock hollow metal doors with 161 cutouts
  • For all types of single and double doors with mullion - 8’ x 8’ double doors with 9954 or 9854 mullion
Style Rim exit device
Trim Night latch trim - 210NL:
- Key retracts latch
Handing Non-handed
Door Thickness 1-3/4" Standard or 2-1/4"
Dogging Feature - Non-fire rated: 299 ( black - finish)mullion
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-1/4"
- Pushbar depressed: 3"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
Stile Minimum width 4-3/4"

This Von Duprin rim exit device is designed to cover stock hollow metal door with 161 cutouts. It will suit all types of single doors and double doors with a mullion in standard duty applications. This 22NL device is operated with the night latch function, where a key in the cylinder will retract the deadlocking latch to allow for entry.
