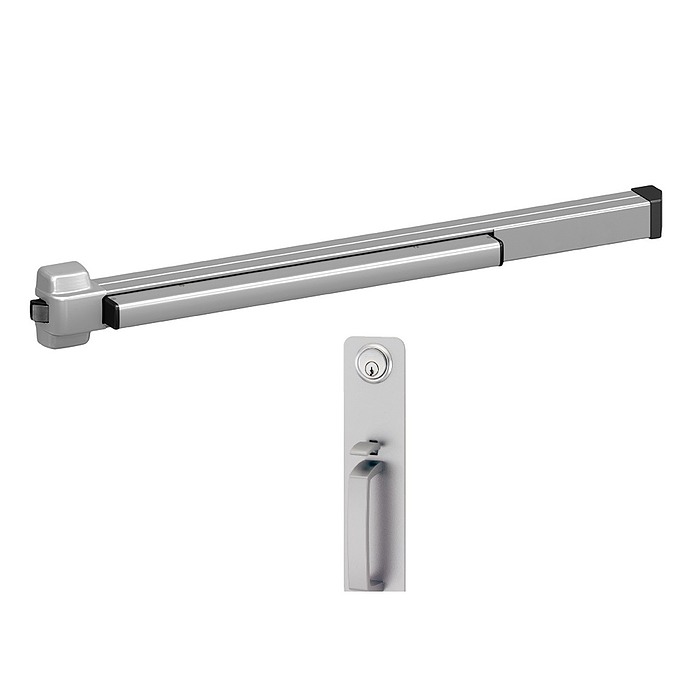

Von Duprin 22TP

Rim Exit Device with Thumbpiece Trim

Quick Product Details

  • Rim Exit Device
  • With Thumbpiece Trim
Price: $387.00 /each

SKU: 22TP

Choose Options Below

This Von Duprin 22TP is a standard duty, Grade 1 rim exit device with the thumbpiece trim. The use of a key will lock and unlock the thumbpiece and a 1-1/4" mortise cylinder is required. It covers stock hollow metal doors with 161 cutouts.

  • In Stock!
  • Order in the next 24 hours 29 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $387.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish :

SP28 - Sprayed Aluminum (628) SP28 - Sprayed Aluminum (628)
SP313 - Sprayed Dark Bronze (695) SP313 - Sprayed Dark Bronze (695)

Choose Cylinder 1-1/4" Mortise:

1-1/4 1-1/4" Satin Chrome Mortise Cylinder Schlage C Keyway +$11.00
No Mortise cylinder needed

Help Me Decide

  • Mortise cylinder includes 2 keys.

Choose Rail Size:

3 FT
4 FT +$6.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Fire Rated:

UL Fire Label Exit Device +$62.00
Non Fire Rated

Help Me Decide

  • Fire Rated Exit Device or Door - Constructed to provide a specific degree of fire protection. It is typically rated for a period of time as resistant to penetration by fire.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

  • Finish :

  • Cylinder 1-1/4" Mortise: info icon

    • 1-1/4" Satin Chrome Mortise Cylinder Schlage C Keyway
    • No Mortise cylinder needed
  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Fire Rated: info icon

    • UL Fire Label Exit Device
    • Non Fire Rated

Product at A Glance

  • Covers stock hollow metal doors with 161 cutouts
  • For all types of single and double doors with mullion - 8’ x 8’ double doors with 9954 or 9854 mullion
Style Rim exit device
Trim Thumbpiece trim 230TP:
- Key locks and unlocks thumbpiece
Handing Non-handed
Door Thickness 1-3/4" Standard
Dogging Feature Hex key dogging standard on non fire rated devices
Strike - Non-fire rated: 299 ( black - finish)mullion
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-1/4"
- Pushbar depressed: 3"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
Stile Minimum width 4-3/4"
