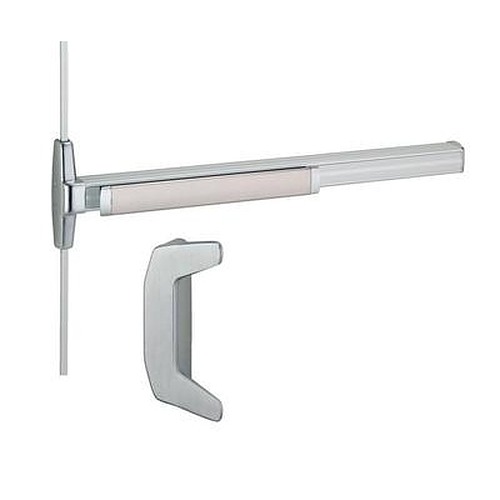

Von Duprin 3327A-DT-3FT

Narrow Stile Surface Mounted Vertical Rod Device with Dummy Pull Trim

Quick Product Details

  • Vertical Rod Exit Device
  • With Dummy Pull Trim
  • Surface Mounted

or for better pricing

Price: $2,619.00 /each

SKU: 3327A-DT-3FT

Choose Options Below

This Von Duprin 3327A-DT-3FT is a narrow stile, surface mount vertical rod exit device with a dummy pull trim. This trim is designed to be pulled when the device is dogged down into passage mode. Rail measures three feet standard and it can be ordered as a special order measuring four feet.

  • Stock Item
  • Order in the next 14 hours 49 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $2,619.00

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Special Orders Available:
  • Available with 4’ rail size
  • More unlisted finishes available
  • SS - signal switches available
  • EL Electric Latch Retraction available
  • UL Fire-rated device available
Contact us directly to place your special orders.

Available Options: Choose Options Above

Product at A Glance

  • For all types of single and double doors with mullion
  • Covers stock hollow metal doors with 86 or 161 cutouts
Style Vertical Rod exit device
Mounting Surface mounted
Trim Dummy Pull Trim -386DT:
- Pull when device is dogged
Handing Non-handed except when the SS signal switch option is used
Door Thickness 1-3/4" (standard)
Door Height 7' (standard) Extension rods available 1' or 3' for doors over 7'
Dogging Feature Hex key dogging standard, cylinder dogging optional
Strike - Top: 266 - dull black finish
- Bottom: 248L4 & 304L - unfinished
Latch Bolt Deadlocking, anti-friction top and bottom bolt
Throw 5/8"
Door Undercut 1/4"
Vertical Rods 1/2" square tubing
Projection - Push-bar Neutral: 3-13/16"
- Push-bar Depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device 39-5/8"
Center Case Dimensions 8-3/16" x 2-13/32" x 1-9/16
Mechanism Case Dimension 2-1/4" x 2-1/4"
Top and Bottom Latch 4-1/2" x 2-1/8" x 1-1/2"
Top Rod Length 34-15/16"
Bottom Rod Length 31-1/4"
Rail Size 3'
Stile Minimum 1-3/4" wide with standard strikes
