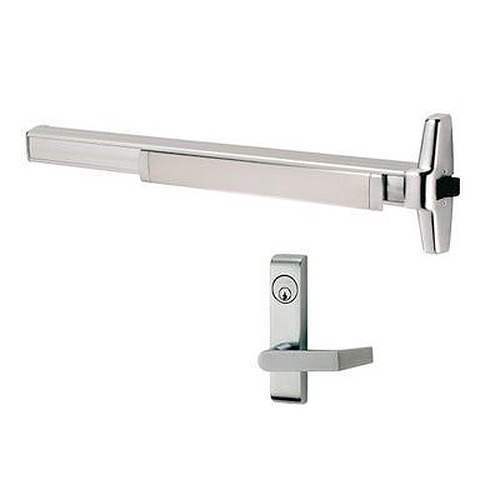

Von Duprin 33A-L-4FT-US26

Special Order Narrow Stile Rim Exit Device with Lever Trim

Quick Product Details

  • Rim Exit Device
  • For Narrow Stile
  • With Lever Trim
  • Polished Chrome Finish-US26
  • For 4' Wide Door
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 33A-L-4FT-US26

Choose Options Below

This Von Duprin 33A-L is s narrow stile rim exit device with lever trim that is operated with the use of a key. A 1-1/4"mortise cylinder is required for use with this trim. Available with electric latch retraction and for right hand reverse and left hand reverse application.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $1,708.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse (LHR)
Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder:

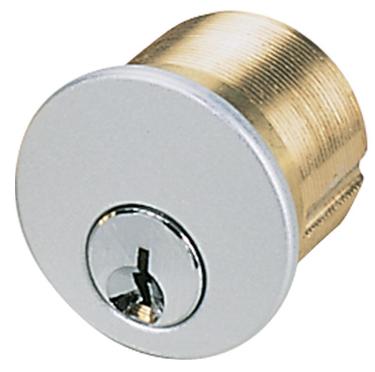

1-1/4 1-1/4" Satin Chrome Mortise Cylinder with Schlage C Keyway +$12.00
No Mortise Cylinder

Help Me Decide

  • Includes 2 keys

Overview

Special order non stock item with 4 week lead time

  • For doors 4' wide.
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty



Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
  • Cylinder: info icon

    • 1-1/4" Satin Chrome Mortise Cylinder with Schlage C Keyway
    • No Mortise Cylinder

Product at A Glance

Style Narrow stile rim exit device
Function Keyed lever trim - 360L:
- Key locks and unlocks the lever
Handing Handed
Door Thickness 1-3/4" Standard
Stile Minimum width 1-3/4"
Dogging Feature Hex key dogging standard
Center Case Dimensions 8-3/16" X 2-13/32" X 1-9/16"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 1439 (dull black-finish)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
