Von Duprin 33A-NL-OP-711-4FT

Special Order Narrow Stile Rim Exit Device with Night Latch Trim

or for better pricing

Price: $2,053.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 33A-NL-OP-711-4FT

Choose Options Below

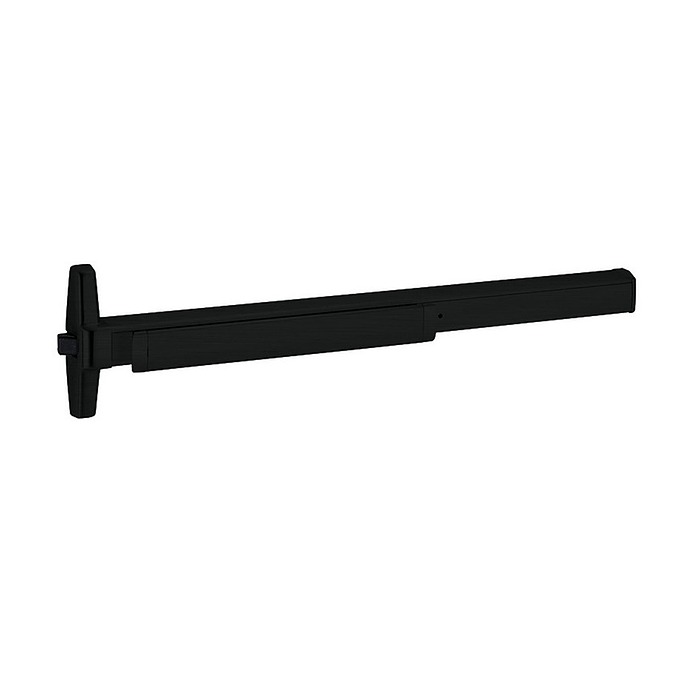

Von Duprin 33A-NL-OP, narrow stile exit device with night latch trim for door stiles as narrow as 1-3/4". For all types of single and double doors. Key retracts latch, re-locks when key is removed. Optional Pull Required. 711 - Flat Black finish.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $2,053.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

315 (711)Flat Black 315 (711)Flat Black

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Black Face, Brass Cylinder (QH200) + $18.00 Recommended Rim Cylinder Schlage C Keyway Black Face, Brass Cylinder (QH200) +$18.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview

Special order item with 14 week lead time.
  • Narrow stile device with 388 night latch trim, key retracts latch re-locks when key is removed. Optional Pull Required
  • Night latch requires a rim cylinder, not included.
  • For aluminum stile glass doors with stiles as narrow as 1-3/4"
  • For doors 1-3/4" thick standard
  • Strike- 1439.
  • Dogging feature- hex key dogging standard
  • Latch Bolt- deadlocking, 3/4" throw
  • 711 - Flat Black finish.
  • Made for 4ft wide doors

Available Options: Choose Options Above

  • Finish:

  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Black Face, Brass Cylinder (QH200)
    • No Rim Cylinder Needed

More Info

  • Device lengths- 4' for a 2'10"-4' door size.
  • UL listed for Panic Exit Hardware.
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • Device centerline from finished floor-- 39-13/16"
  • Finished floor 39-11/16"
  • Mechanism case dimensions 2-1/4" x 2-1/4"
  • Center case dimensions- 8 -3/16" x 2-13/32" x 1-9/16”
  • Projection pushbar neutral – 3-13/16"
  • Pushbar depressed – 3-1/16"
