Von Duprin 33A-NL-OP

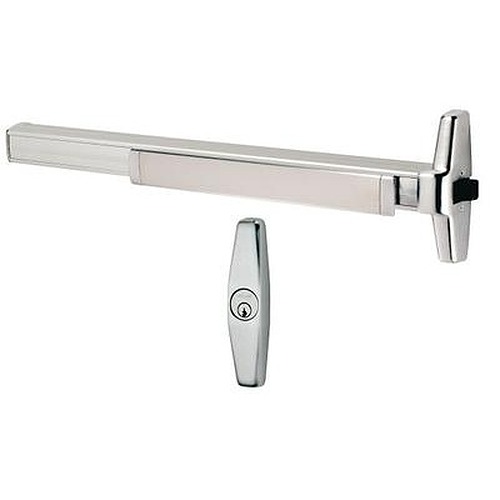

Narrow Stile Rim Exit Device with Night Latch Trim

Quick Product Details

  • Rim Exit Device
  • For Narrow Stile
  • With Night latch trim

or for better pricing

Price: $1,604.00 /each

SKU: 33A-NL-OP

Choose Options Below

This Von Duprin 33A-NL-OP is a night latch trim rim exit device for applications with a narrow stile. This trim requires a rim cylinder which can be selected above in the available options. Select a rail size that will accommodate your door size.

  • Stock Item
  • Order in the next 5 hours 3 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

or for better pricing
Price: $1,604.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US28 (628) Anodized Aluminum US28 (628) Anodized Aluminum
313  Anodized Dark Bronze + $3.00 313 Anodized Dark Bronze +$3.00
US26D (626) Satin Chrome + $298.00 US26D (626) Satin Chrome +$298.00

Choose Rail Size:

3 FT
4 FT +$17.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose EL (Electric Latch Retraction):

3FT EL- Electric Latch Retraction (050070) +$1,026.00
4FT EL- Electric Latch Retraction (050078) +$1,026.00
No EL (Electric Latch Retraction)

Help Me Decide

  • The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation.
  • EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
  • The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914-2RS power supply.

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $17.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$17.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Special Orders Available:
  • More unlisted finishes available
  • RX, LX or SS switches available
Contact us directly to place your special orders.

Available Options: Choose Options Above

  • Finish:

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • EL (Electric Latch Retraction): info icon

    • 3FT EL- Electric Latch Retraction (050070)
    • 4FT EL- Electric Latch Retraction (050078)
    • No EL (Electric Latch Retraction)
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed

Product at A Glance

Style Narrow stile rim exit device
Function Night latch trim - 388:
- Key locks latch
- Relocks when key is removed
- Optional Pull required
Handing Non-handed
Door Thickness 1-3/4" Standard
Stile Minimum width 1-3/4"
Dogging Feature Hex key dogging standard
Center Case Dimensions 8-3/16" X 2-13/32" X 1-9/16"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 1439 (dull black-finish)
Latch Bolt Deadlocking - 3/4" throw
Projection -Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
