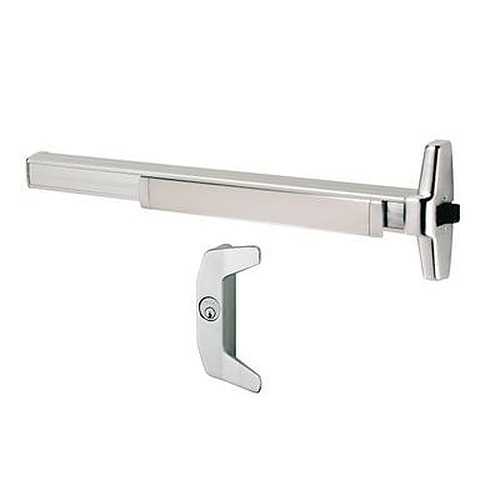

Von Duprin 35A-NL

• Narrow stile device with 386NL night latch trim.
• 35A Series features smooth mechanism case.
• Night latch function,key retracts latch, door remains locked.
• Night latch requires a rim cylinder, not included.
• For aluminum stile glass doors with stiles as narrow as 1-3/4"
• For doors 1-3/4" thick standard
• Strike- 1439 – dull black finish
• Dogging feature- hex key dogging standard
• Latch Bolt- deadlocking, 3/4" throw

Available Options: Choose Options Above

• Finish:

  • US28 (628) Anodized Aluminum
  • 313 Dark Bronze Painted
  • US26D (626) Satin Chrome

• Rail Size:

  Rail Size

  ×

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

  Close
  • 3 FT
  • 4 FT

• Cylinder Rim:

  Cylinder Rim

  ×

  • Rim cylinder includes 2 keys.

  Close
  • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
  • No Rim Cylinder Needed

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



  ​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse - LHR
  • Right Hand Reverse - RHR
