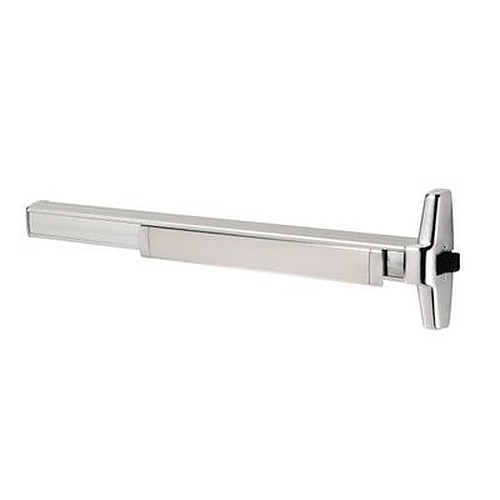

Von Duprin 35AEO-626AM-3FT-WH

Special Order Narrow Stile Rim Exit Device with Antimicrobial Coating

Quick Product Details

  • Rim Exit Device Exit Only
  • For Narrow Stile
  • Finish-US26D-AM Satin Chrome with Antimicrobial Coating
  • Weep Holes
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 35AEO-626AM-3FT-WH

This Von Duprin 35A-EO exit device with antimicrobial coating and weep holes, specifically for doors with stiles measuring as narrow as 1-3/4". It functions as exit only without a trim.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview


Quality:
  • High traffic, public use areas are ideally suited to antimicrobial coated door hardware. With hundreds or thousands of people using accessing these areas every day, safety should be top of mind. Adding door hardware with an antimicrobial coating can make a big difference by inhibiting the growth of bacteria on these high-touch surfaces. Not effective against viruses



Product at A Glance

Style Narrow stile rim exit device
Function Exit only - trim not included
Handing Non-handed
Door Thickness 1-3/4" Standard
Stile Minimum width 1-3/4"
Dogging Feature Hex key dogging standard
Center Case Dimensions 8-3/16" X 2-13/32" X 1-9/16"
Mechanism Case Dimensions 2-1/4" X 2-1/4"
Strike 1439 (dull black-finish)
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device - W/o mullion: 39-13/16"
- With mullion: 39-11/16"
