Von Duprin 47447540

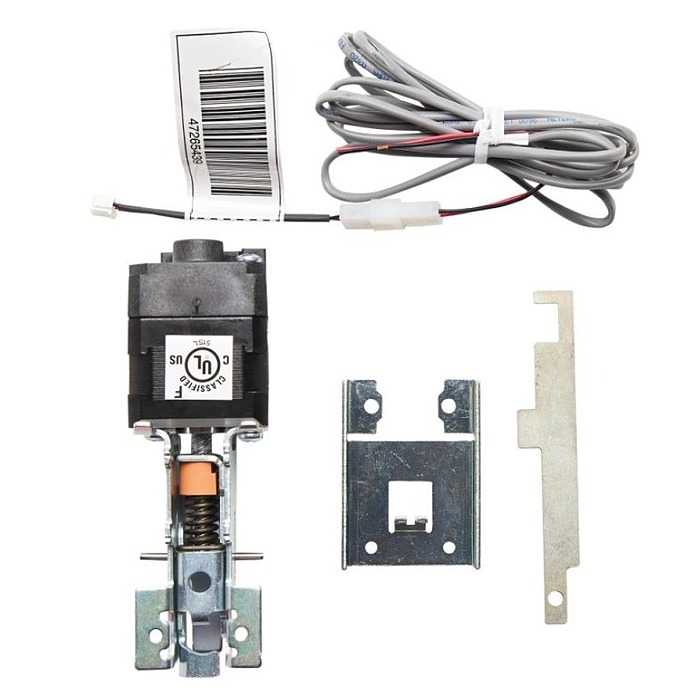

QEL Field Installation Kit for 22 Series Devices

Price: $770.00 /each

SKU: 47447540

Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. These devices always provide mechanical egress. The QEL is used with a credential reader and access control system to unlock the door momentarily for authorized users. Made for use with the Von Duprin 22-Series devices only.

  • Stock Item
  • Order in the next 6 hours 21 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Quantity Discounts Available!
  • Order 4+ $TBD /ea.
QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

Overview

  • Field install motor driven quite latch retraction.
  • Quiet operation in both mechanical and electronic states.
  • Energy efficient motorized latch retraction utilizes standard 2 amp power supply, enabling longer wire runs from power source.
  • On-board installation and troubleshooting diagnostics built into device.
  • Auto adjust latch retraction – automatically adjusts latch throw and pull.
  • Voltage 24 VDC.
  • Current 1.0 A Inrush (0.5 sec) 0.14 A Holding.
  • Requires  a power supply and 900-2RS option board designed to control two electric latch retraction devices and provide time delay between the firing of outputs is required. Not included.

Product at A Glance

QEL KIT Von Duprin 22 series rim and vertical rod exit devices

More Info

  • Devices are BHMA Certified to ANSI/BHMA A156.3 (2001) Grade 1 for Exit Devices.
  • Devices are UL and cUL Listed as “Panic Hardware”  (UL 305) and as “Fire Exit Hardware” (UL 10C).
  • The QEL Conversion Kit is UL Classified under “Accessories for Single-Point Locks and Latches and Fire Exit Hardware” (UL 10C).
