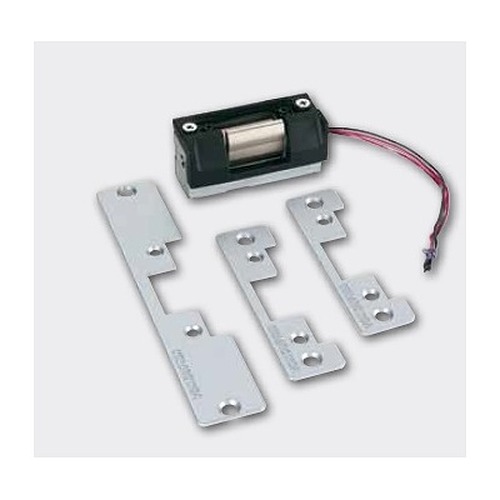

Von Duprin 5100-3FP

Medium Duty Electric Strike with 3 Faceplates

Quick Product Details

  • Electric Strike
  • Door/frame type: hollow metal, wood or aluminum
  • Medium duty applications
  • Used With Cylindrical locks
Price: $203.00 /each

SKU: 5100-3FP

Choose Options Below

This Von Duprin 5100-3FP electric strike is for hollow metal and aluminum frame applications. It is used with Cylindrical locks. It has a holding strength of up to 1000 lbs. and an impact strength of 70 lbs.

  • Stock Item
  • Order in the next 3 hours 27 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $203.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

689-Sprayed Aluminum 689-Sprayed Aluminum
622- Dull Black Painted 622- Dull Black Painted
695- Sprayed Duranodic 695- Sprayed Duranodic


Quality and Safety:
  • Meet the requirements of ANSI 156.5, Grade 1
  • UL 1034 Burglary listing
  • Tamper Resistant


Available Options: Choose Options Above

Product at A Glance

  • Fail-safe/fail-secure selectable
  • Adjustable keeper
  • Features an internal solenoid
  • Three faceplates included
  • Includes mounting tabs
  • Latchbolt throw 1⁄2" to 5⁄8" with 1⁄8" door-frame gap
Style Electric strike
Used With Cylindrical locks
Application Hollow Metal, Aluminum and Wood Frame/Door
Grade Standard Duty
Handing Non-handed
Voltage 12/24DC - dual voltage: 12 VDC at 380 mA / 24 VDC at 190 mA
Backbox Depth - 1-11/16"
Keeper Depth - 1/2"
Static Strength 1300 lbs.
Impact Strength 70 lbs.
Faceplates - 4-7/8" round corner ANSI A115.2 standard frame prep
- 4-7/8" square corner ANSI A115.2 standard frame prep
- 7-15/16" long, round corner wood frame prep



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


Changing the operational function thumbnail

Changing the operational function
