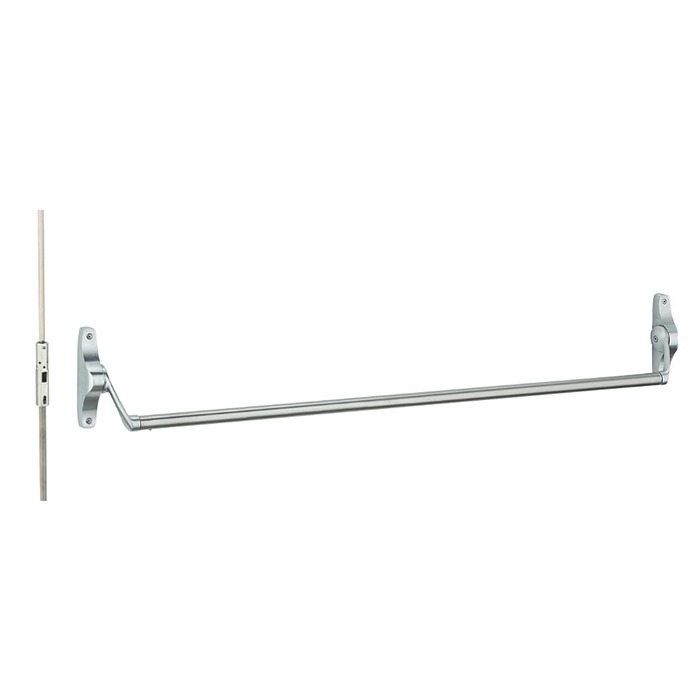

Von Duprin 5547L-26D-17

Special Order Concealed Vertical Rod Cross Bar Exit Device

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 5547L-26D-17

Choose Options Below

The Von duprin 5547L concealed vertical rod cross bar exit devices for use on single or double metal door. Fits door stiles as narrow as 1-3/4". This product includes a lever trim with the "17" style lever. Mortise cylinder required for operation, not included.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse/Left Hand
Right Hand Reverse/ Right Hand

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Choose Finish:

Satin Stainless Steel - 630 Satin Stainless Steel - 630

Overview

Special order item with 6 week lead time.

  • Concealed vertical rod device for use on single or double metal doors.
  • UL listed for accident hazard installations and fits door stiles as narrow as 1-3/4".
  • Includes lever trim with "17" style lever
  • Mortise cylinder required, not included
  • Satin chrome finish-26D
  • Crossbar length 42" for 48" wide door.
  • Standard concealed vertical top rod for doors 6'8" to 8' tall.
  • Handed, field reversible.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse/Left Hand
    • Right Hand Reverse/ Right Hand
  • Finish:
