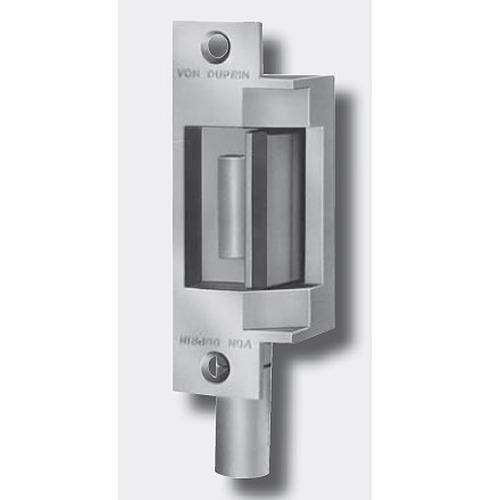

Von Duprin 6210

Electric Strike for use with Hollow Metal Frame Applications with Mortise Locks

Quick Product Details

  • Electric Strike
  • For Single Door
  • For Hollow metal, aluminum and wood doors
  • Heavy Duty
  • Used With: Mortise locks without deadbolt
SKU: 6210

Price: $412.00 /each

Choose Options Below

This Von Duprin 6210 electric strike is compatible for use with multiple mortise locks with a latchbolt that has a 3/4" throw. This strike is horizontally adjustable and is of stainless steel construction.

  • In Stock!
  • Order in the next 36 hours 23 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $412.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Voltage:

Choose Fail Secure/Fail Safe:

Help Me Decide

  • Fail Secure — FSE  electric strikes require power to be applied to unlock the strike lip. On loss of power, the strike is locked. Field convertible with parts.
  • Fail-Safe - FS electric strikes require power to be applied to lock the strike lip. On loss of power, the strike is unlocked. Building codes prohibit the use of fail-safe strikes on labeled openings. Field convertible with parts.



Choose Dual Switch Monitoring:

Help Me Decide

  • Dual switch monitoring (DS) option has two SPDT contacts. One switch monitors the tripper which is depressed when the latchbolt is inserted into the strike pocket. The second switch monitors the condition of the strike lip, open or closed and locked.
  • Rated 24V, operating range from 2 ampere to 50 milliampere.
  • Factory Installed Only
  • Available in 24DC, US32D finish.



Choose Finish:

Overview


Quality and Safety:
  • Meet the requirements of ANSI 156.5, Grade 1, 1992.
  • UL Listed Burglary-Resistant and Electric Strike for fire doors and frames - A label for single doors and B label for double doors

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place  your special order.


Available Options: Choose Options Above

  • Voltage:

    • 12VDC
    • 24VDC
  • Fail Secure/Fail Safe: info icon

    • Fail Secure (FSE) standard
    • Fail Safe (FS)
  • Dual Switch Monitoring: info icon

    • Dual Switch Monitoring (DS)
    • No Dual Switch Monitoring
  • Finish:

Product at A Glance

  • Uses ANSI prep at standard height.
  • Strike pocket inserts are provided to accommodate different manufacturers deadlocking trigger locations.
  • Stainless Steel Construction
  • Accepts 3/4” throw latchbolt
  • Horizontally Adjustable
  • Plug Connectors
  • AC operation optional with SO12 or SO24 rectifier kits
  • For 16VAC Current, use SO-24 Rectifier Kit.
Style Electric strike
Used With Mortise locks with deadbolt:
- Von Duprin 7500
- Best 30H
- Corbin Russwin ML2200, 5000, 9000
- Falcon M100, M200, M300, M400, M500, M600
- Sargent 7700, 8100
- Schlage L9000
- Yale 8700.
Application Hollow metal, aluminum and wood single doors
Grade Heavy Duty
Handing Non-handed
Holding Strength 1500 lbs.
Impact Strength 70 lbs.
Finish Satin stainless steel (630)

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Electric Strike for use with Hollow Metal Frame Applications with Mortise Locks
