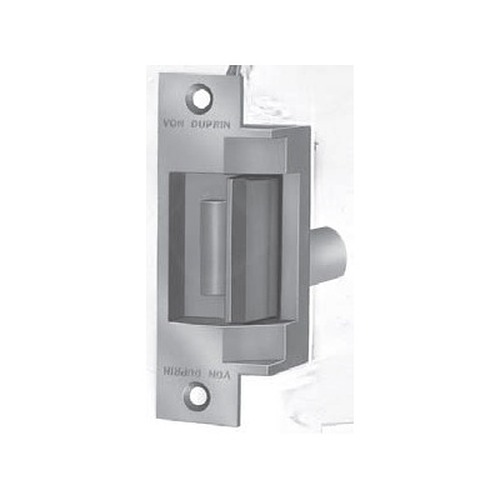

Von Duprin 6211WF

Electric Strike for use with Wood Frame Applications with Mortise or Cylindrical Locks

Quick Product Details

  • Electric Strike
  • For Single Door
  • For Wood Frame Applications
  • Heavy Duty
  • Used With: Mortise Locks Without Deadbolt or Cylindrical Locks
Price: $609.00 /each

SKU: 6211WF

Choose Options Below

This Von Duprin 6211WF is an electric strike for mortise locks without a deadbolt and cylindrical locks in applications with a wood frame on single doors. It has a holding strength of 1500 pounds and an impact strength of 70 pounds.

  • Stock Item
  • Order in the next 21 hours 54 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $609.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Fail Secure/Fail Safe:

Fail Secure (FSE) standard
Fail Safe (FS) +$32.00

Help Me Decide

  • Fail Secure — FSE  electric strikes require power to be applied to unlock the strike lip. On loss of power, the strike is locked. Field convertible with parts.
  • Fail-Safe - FS electric strikes require power to be applied to lock the strike lip. On loss of power, the strike is unlocked. Building codes prohibit the use of fail-safe strikes on labeled openings. Field convertible with parts.



Choose Finish:

US32D Satin Stainless Steel US32D Satin Stainless Steel

Choose Voltage:

12VDC
24VDC

Choose Dual Switch Monitoring:

Dual Switch Monitoring (DS) Available only with Fail Secure (FSE) +$160.00
No Dual Switch Monitoring

Help Me Decide

  • Dual switch monitoring (DS) option has two SPDT contacts. One switch monitors the tripper which is depressed when the latchbolt is inserted into the strike pocket. The second switch monitors the condition of the strike lip, open or closed and locked. DS option only available with FSE, Fail Secure .
  • Rated 24V, operating range from 2 ampere to 50 milliampere.
  • Factory Installed Only
  • Available in 24DC, US32D finish.



Overview


Quality and Safety:
  • Meet the requirements of ANSI 156.5, Grade 1, 1992.
  • UL Listed Burglary-Resistant and Electric Strike for fire doors and frames - A label for single doors and B label for double doors

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place  your special order.


Available Options: Choose Options Above

  • Fail Secure/Fail Safe: info icon

    • Fail Secure (FSE) standard
    • Fail Safe (FS)
  • Finish:

  • Voltage:

    • 12VDC
    • 24VDC
  • Dual Switch Monitoring: info icon

    • Dual Switch Monitoring (DS) Available only with Fail Secure (FSE)
    • No Dual Switch Monitoring

Product at A Glance

  • Designed to replace Folger Adams 732
  • Fits modified ANSI 115.2 cutout
  • Stainless Steel Construction
  • Accepts 3/4” throw latchbolt
  • Horizontally Adjustable
  • Includes Plug Connectors
  • AC operation optional with SO12 or SO24 rectifier kits
  • For 16VAC Current, use SO-24 Rectifier Kit.
  • Cylindrical Lock Compatibility:
    • Baldwin 1/2” - 3/4”
    • Best 3/8” - 3/4”
    • Corbin 1/2” - 3/4"”
    • Falcon 1/2” - 3/4”
    • Russwin 1/2” - 3/4”
    • Sargent 1/2” - 3/4”
    • Schlage 3/8” - 3/4”
    • Yale 1/2” -  3/4”
  • Note: Signalling may not function when using 3/8” throw bolt, Deadlocking cannot be guaranteed with all locks
  • Mortise Lock compatibility:
    • Von Duprin 7500
    • Adams Rite 4510, 4710
    • Baldwin 6000
    • Best 24H, 30H
    • Corbin 9000
    • Falcon M2300, M2500, M2600,M3300, M3500, M3600
    • Russwin Mortise
    • Sargent 7700, 8100, 9000
    • Schlage L9000, K30, K40, K50, K60
    • Yale 7030, 7130, 8600, 8700
Style Electric strike
Used With Mortise locks without deadbolt and cylindrical locks
Application Wood frame single door
Grade Heavy Duty
Handing Non-handed
Holding Strength 1500 lbs.
Impact Strength 70 lbs.
Finish Satin stainless steel (630)
