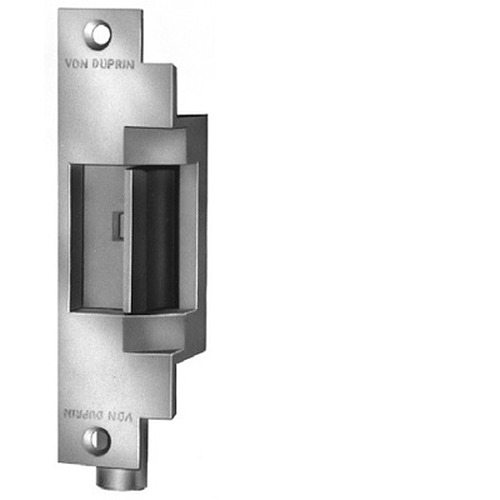

Von Duprin 6212-FS-DS-630-24VDC

Special Order Electric Strike for use with Hollow Metal or Aluminum Frame Applications with Mortise or Cylindrical Locks

Quick Product Details

  • Electric Strike
  • For Hollow metal, aluminum frame applications
  • Heavy Duty
  • Used With: Mortise Locks Without Deadbolt or Cylindrical Locks
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 6 week lead time

SKU: 6212-FS-DS-630-24VDC

This Von Duprin 6212 is an electric strike for use with mortise locks without a deadbolt and cylindrical locks on single doors with a hollow metal or aluminum frame. This strike is of high quality stainless steel construction to provide reliable operation.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Call for Pricing 1-866-749-7661
QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 6 week lead time.

  • Meet the requirements of ANSI 156.5, Grade 1, 1992.
  • UL Listed Burglary-Resistant and Electric Strike for fire doors and frames - A label for single doors and B label for double doors
  • Dual switch monitoring (DS) option has two SPDT contacts. One switch monitors the tripper which is depressed when the latchbolt is inserted into the strike pocket. The second switch monitors the condition of the strike lip, open or closed and locked.
  • Rated 24VDC, operating range from 2 amp to 50 milliampere.




Product at A Glance

  • Designed to replace Von Duprin 3146
  • Fits modified ANSI 115.2 cutout
  • Stainless Steel Construction
  • Accepts 3/4” throw latchbolt
  • Horizontally Adjustable
  • Includes Plug Connectors
  • Cylindrical Lock Compatibility:
    • Baldwin 1/2” -  3/4”
    • Best 3/8” - 3/4”
    • Corbin 1/2” - 3/4”
    • Falcon 1/2” - 3/4”
    • Russwin 1/2” - 3/4”
    • Sargent 1/2” - 3/4”
    • Schlage 3/8” - 3/4”
    • Yale 1/2” - 3/4”
  • Mortise Lock compatibility:
    • Von Duprin 7500
    • Adams Rite 4510, 4710
    • Baldwin 6000
    • Best 24H, 30H
    • Corbin 9000
    • Falcon M2300, M2500, M2600,M3300, M3500, M3600
    • Russwin Mortise
    • Sargent 7700, 8100, 9000
    • Schlage L9000, K30, K40, K50, K60
    • Yale 7030, 7130, 8600, 8700
Style Electric strike
Used With Mortise locks without deadbolt and cylindrical locks
Application Hollow metal and aluminum frame single doors
Grade Heavy Duty
Handing Non-handed
Holding Strength 1500 lbs.
Impact Strength 70 lbs.
Finish Satin stainless steel (630)
