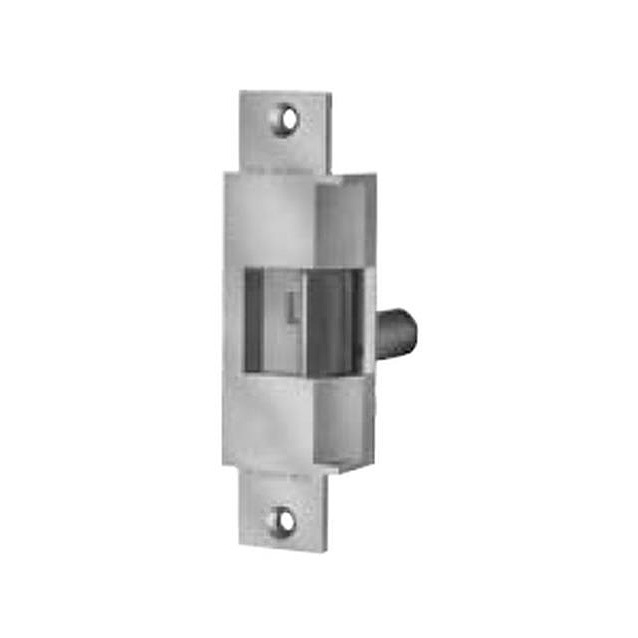

Von Duprin 6223

Closed Back Electric Strike for use with Hollow Metal, Aluminum or Wood Applications with Mortise or Cylindrical Locks

Quick Product Details

  • Closed Back Electric Strike
  • For double doors
  • For Hollow Metal, Aluminum and Wood Frame Applications
  • Heavy Duty
  • Used With: Mortise locks without deadbolt and Cylindrical locks
Price: $672.00 /each

SKU: 6223

Choose Options Below

This Von Duprin 6223 closed back electric strike is designed for use with mortise locks without a deadbolt or cylindrical locks. It can be placed on hollow metal, aluminum and wood frames in double door applications.

  • Stock Item
  • Order in the next 22 hours 4 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $672.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Fail Secure/Fail Safe:

Fail Secure (FSE) standard
Fail Safe (FS) +$32.00

Help Me Decide

  • Fail Secure — FSE  electric strikes require power to be applied to unlock the strike lip. On loss of power, the strike is locked. Field convertible with parts.
  • Fail-Safe - FS electric strikes require power to be applied to lock the strike lip. On loss of power, the strike is unlocked. Building codes prohibit the use of fail-safe strikes on labeled openings. Field convertible with parts.



Choose Finish:

Satin Stainless Steel (US32D) Satin Stainless Steel (US32D)

Choose Voltage:

24VDC

Overview


Quality and Safety:
  • Meet the requirements of ANSI 156.5, Grade 1, 1992.
  • UL Listed Burglary-Resistant and Electric Strike for fire doors and frames - A label for single doors and B label for double doors

Special Orders Available:
  • More unlisted finishes available
  • Dual Signal Switch (DS) available
Contact us directly to place  your special order.

Available Options: Choose Options Above

  • Fail Secure/Fail Safe: info icon

    • Fail Secure (FSE) standard
    • Fail Safe (FS)
  • Finish:

  • Voltage:

    • 24VDC

Product at A Glance

  • Designed to replace Von Duprin 3091 and 3092
  • Stainless Steel Construction
  • Accepts 3/4” throw latchbolt
  • Horizontally Adjustable
  • Includes Plug Connectors
  • AC operation optional with SO12 or SO24 rectifier kits
  • For 16VAC Current, use SO-24 Rectifier Kit.
  • Cylindrical Lock Compatibility:
    • Baldwin 1/2” - 3/4”
    • Best 3/8” - 3/4”
    • Corbin 1/2” - 3/4”
    • Falcon 1/2” - 3/4”
    • Russwin 1/2” - 3/4”
    • Sargent 1/2” - 3/4”
    • Schlage 3/8” - 3/4”
    • Yale 1/2” - 3/4”
  • Note: Signalling may not function when using 3/8” throw bolt, Deadlocking cannot be guaranteed with all locks.
  • Mortise Lock compatibility:
    • Von Duprin 7500
    • Adams Rite 4510, 4710
    • Baldwin 6000
    • Best 24H, 30H
    • Corbin 9000
    • Falcon M2300, M2500, M2600,M3300, M3500, M3600
    • Russwin Mortise
    • Sargent 7700, 8100, 9000
    • Schlage L9000, K30, K40, K50, K60
    • Yale 7030, 7130, 8600, 8700
Style Closed Back Electric strike
Used With Mortise locks without deadbolt and cylindrical locks
Application Hollow metal, aluminum and wood frame double doors
Grade Heavy duty
Handing Non-handed
Door Thickness 1-3/4"
Stile 4-3/4" minimum
Holding Strength 1500 lbs.
Impact Strength 70 lbs.
Finish Satin stainless steel (630)
