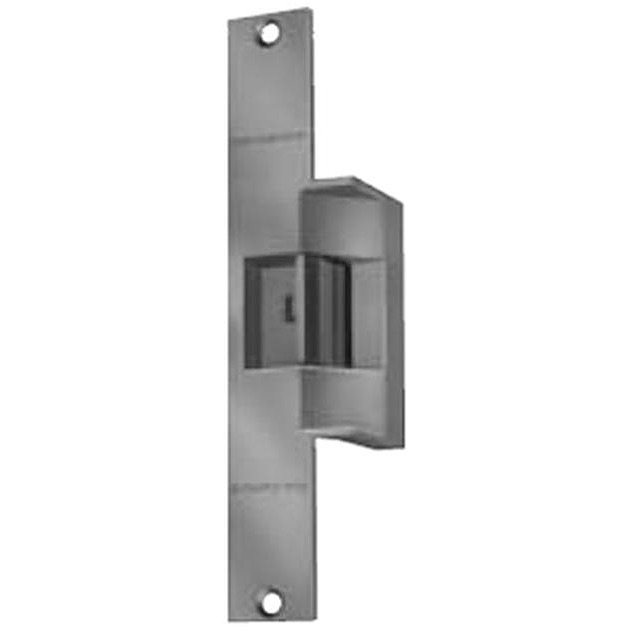

Von Duprin 6224

Special Order Closed Back Electric Strike for use with Hollow Metal or Aluminum Applications with Mortise or Cylindrical Locks

Quick Product Details

  • Closed Back Electric Strike
  • For double doors
  • For Hollow Metal and Aluminum Frame Applications
  • Heavy Duty
  • Used With: Mortise locks without deadbolt and Cylindrical locks
Price: $556.00 /each
Special Order non-stock item Requires 4 week lead time

SKU: 6224

Choose Options Below

This Von Duprin 6224 closed back electric strike is constructed to fit hollow metal and aluminum, double door applications with mortise locks without deadbolt or cylindrical locks. This strike is designed to replace the Folger Adams 310-2-3/4".

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $556.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Voltage:

12VDC
24VDC

Choose Fail Secure/Fail Safe:

Fail Secure (FSE) standard
Fail Safe (FS) +$22.00

Help Me Decide

  • Fail Secure — FSE  electric strikes require power to be applied to unlock the strike lip. On loss of power, the strike is locked. Field convertible with parts.
  • Fail-Safe - FS electric strikes require power to be applied to lock the strike lip. On loss of power, the strike is unlocked. Building codes prohibit the use of fail-safe strikes on labeled openings. Field convertible with parts.



Choose Finish:

Satin Stainless Steel (US32D) Satin Stainless Steel (US32D)

Choose Dual Switch Monitoring:

Dual Switch Monitoring (DS) +$112.00
No Dual Switch Monitoring

Help Me Decide

Dual switch monitoring (DS) option has two SPDT contacts. One switch monitors the tripper which is depressed when the latchbolt is inserted into the strike pocket. The second switch monitors the condition of the strike lip, open or closed and locked.
Rated 24V, operating range from 2 ampere to 50 milliampere.
Factory Installed Only
Available in 24DC, US32D finish.



Overview

Special order non stock item with 4 week lead time.
  • Meet the requirements of ANSI 156.5, Grade 1, 1992.
  • UL Listed Burglary-Resistant and Electric Strike for fire doors and frames - A label for single doors and B label for double doors



Available Options: Choose Options Above

  • Voltage:

    • 12VDC
    • 24VDC
  • Fail Secure/Fail Safe: info icon

    • Fail Secure (FSE) standard
    • Fail Safe (FS)
  • Finish:

  • Dual Switch Monitoring: info icon

    • Dual Switch Monitoring (DS)
    • No Dual Switch Monitoring

Product at A Glance

  • Designed to replace Folger Adams 310-2-3/4
  • Stainless Steel Construction
  • Accepts 3/4” throw latchbolt
  • Horizontally Adjustable
  • Includes Plug Connectors
  • AC operation optional with SO12 or SO24 rectifier kits
  • For 16VAC Current, use SO-24 Rectifier Kit.
  • Cylindrical Lock Compatibility:
    • Baldwin 1/2” -  3/4”
    • Best 3/8” - 3/4”
    • Corbin 1/2” - 3/4”
    • Falcon 1/2” - 3/4”
    • Russwin 1/2” - 3/4”
    • Sargent 1/2” - 3/4”
    • Schlage 3/8” - 3/4”
    • Yale 1/2” - 3/4”
  • Note: Signalling may not function when using 3/8” throw bolt, Deadlocking cannot be guaranteed with all locks.
  • Mortise Lock compatibility:
    • Von Duprin 7500
    • Adams Rite 4510, 4710
    • Baldwin 6000
    • Best 24H, 30H
    • Corbin 9000
    • Falcon M2300, M2500, M2600,M3300, M3500, M3600
    • Russwin Mortise
    • Sargent 7700, 8100, 9000
    • Schlage L9000, K30, K40, K50, K60
    • Yale 7030, 7130, 8600, 8700
Style Closed Back Electric strike
Used With Mortise locks without deadbolt and cylindrical locks
Application Hollow Metal and Aluminum Frame Double Doors
Grade Heavy duty
Handing Non-handed
Door Thickness 1-3/4"
Stile 4-3/4" minimum
Holding Strength 1500 lbs.
Impact Strength 70 lbs.
Finish Satin stainless steel (630)
