Von Duprin 6400-630

Special Order Modular Electric Strike for Mortise or Cylindrical Locks

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 6400-630

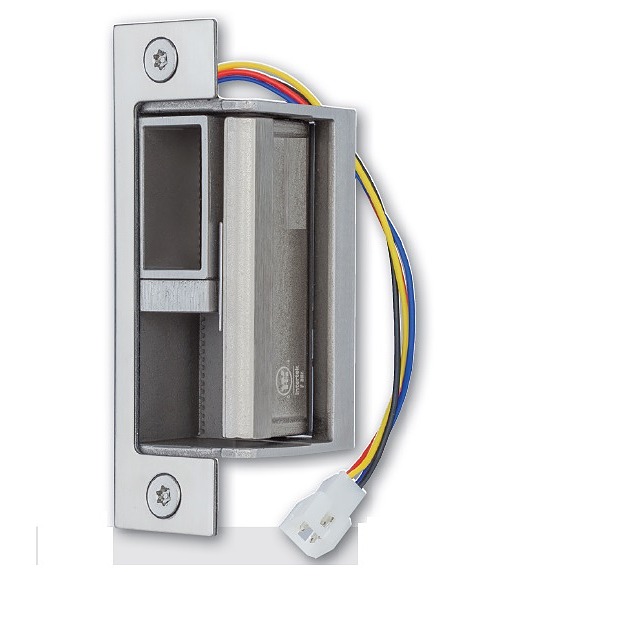

The 6400 electric door strike from Von Duprin is designed to be modular and highly configurable to fit nearly any mortise or cylindrical lock.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?


Special order non stock item with 6 week lead time.
  • Modular design fits cylindrical and nearly any mortise lock.
  • Door/frame type Hollow metal, aluminum & wood.
  • Two faceplates – one each for offset and centerline locks as well as a trim filler plate, mounting tabs and shims and a self-adhesive
    template for frame cuts.
  • Fail-secure only for fire-rated openings.
  • Dual voltage: Field selectable voltage 12 or 24VDC and 12 to 24VAC.
  • 12 VDC at 500 mA / 24 VDC at 240 mA.
  • Includes movable deadbolt keeper, plug and deadlatch ramp inserts.
  • Can accommodate up to 1” deadbolt (for night latch only).
  • Vertical adjustments allow for alignment with a wide variety of mortise locks with offset latches.
  • Non-handed.
  • Satin stainless steel finish.

More Info

  • Meets ANSI/BHMA 156.31 Grade 1.
  • Face plate length 4 7⁄8".
  • Backbox depth 1 3⁄4".
  • 1500 lbs. static strength.
  • UL1034 burglary-resistant.
  • UL 10C 3-hour fire rated, fail secure only.
  • Endurance 2,000,000 cycles.
  • Dynamic strength 70 ft-lbs.
  • Plug-in voltage connectors are included for ease of
    installation and removal during strike servicing.
