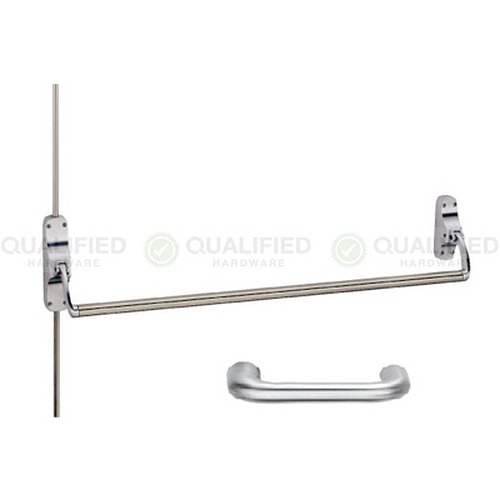

Von Duprin 8827L-03-F-US10B

Special Order Fire Rated Surface Mounted Vertical Rod Exit Device with Lever

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 8827L-03-F-US10B

Choose Options Below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US10B Dark Bronze-(US10B) US10B

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

Special order item with 4 week lead time
  • UL listed for fire exit hardware
  • Classroom function-Key locks/unlock lever. Requires a 1-1/4" mortise cylinder, not included.
  • Dark bronze finish.
  • For 1-3/4" thick doors standard.
  • For 7ft door height.
  • UL listed Panic Hardware.
  • Fully reversible.
  • Field sizeable.
  • 5/8” throw latch bolt.
  • Strike-standard top strike, 299 dull black finish, bottom strikes, 248L-4 and 304L.
  • Crossbar width- 42”.

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR

More Info

  • Crossbar projection - neutral 4-7/8”, depressed 4”
  • Lock stile case –8-1/4” X 2” X 15/16”
  • Hinge stile case- 6” X 1 ¾”X 15/16
  • Crossbar tubing- 1”
  • Top and Bottom latch case- 4” X 2”X1-7/8”
  • Vertical Rod -1/2” tubing
  • Maximum door undercut- 1/4”
