Von Duprin 8875K-F X-612-4FT

Special Order Fire Rated Crossbar Mortise Lock Exit Device

Quick Product Details

  • Fire Rated Crossbar Rim Exit Device
  • Key Locks/Unlocks Door Knob.
  • For 4' Wide Door
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8875K-F X-612-4FT

Choose Options Below

This Von Duprin 8875K-F-612 is a fire rated mortise lock traditional crossbar design exit device with proven service on rugged applications. Crossbar length 42" for 40' door' door. The crossbar tubing is 1". Supplied with a 575 strike with dull black finish.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Mortise cylinder:

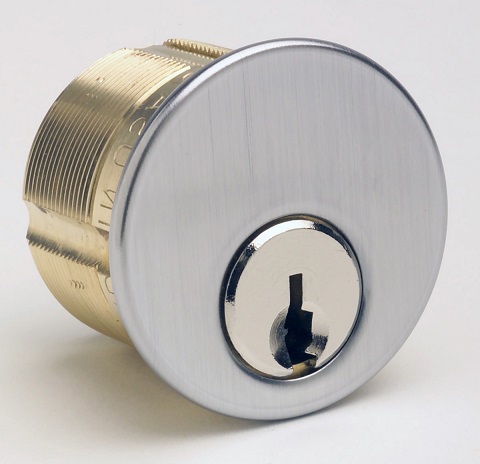

1-1/4" Satin Chrome Mortise Cylinder with Schlage C Keyway +$14.00
No Mortise 1-1/4" Cylinder

Help Me Decide

Keyed cylinder with 2 keys. Schlage "C" keyway.

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

Special order non stock item with 6 week lead time.
Quality:
  • Meets ANSI 156.3-1994 Grade 1 standards
  • UL listed fire rated for panic exit

Available Options: Choose Options Above

  • Mortise cylinder: info icon

    • 1-1/4" Satin Chrome Mortise Cylinder with Schlage C Keyway
    • No Mortise 1-1/4" Cylinder
  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR

Product at A Glance

  • Covers stock hollow metal doors with 86 or 161 cutouts,
  • For all types of single and double doors with mullion,
  • The 7500 mortise lock is field reversible without removing the lock from the door.
  • It has a non handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
Style Crossbar mortise lock fire exit device
Function Key lock/unlocks door knob-mortise cylinder required, not included
Cross Bar Crossbar length 40" for 4' door
Handing Field reversible
Strike 575 - Dull black finish
Latch Bolt Deadlocking - 3/4" throw
Projection - Pushbar neutral: 4-3/4"
- Pushbar depressed: 4"
Crossbar Height to Finished Floor 36-13/16"
Lock Stile Case 8-1/4" x 2-3/4" x 15/16"
Hinge Stile Case 6" x 1-3/4" x 15/16"
Crossbar Tubing 1"
Finish Satin Bronz 612
