Von Duprin 9827L-26D-3

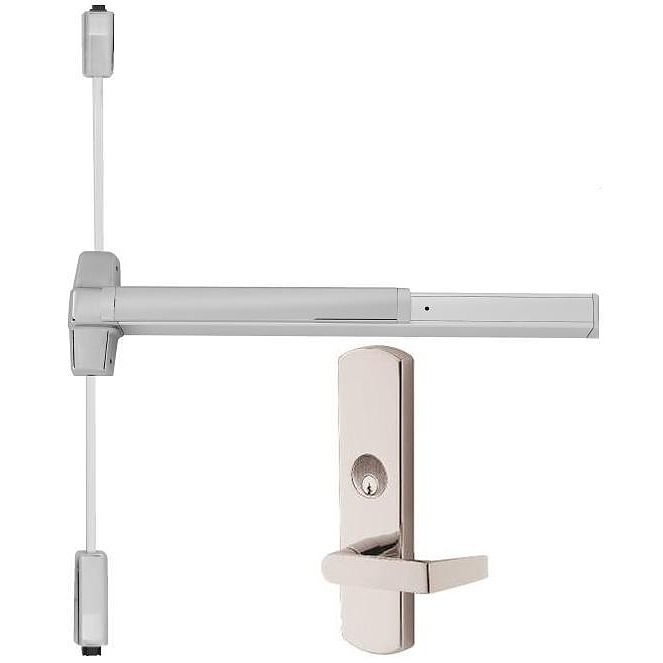

Special Order Surface Mounted Vertical Rod Device with Lever Trim

Quick Product Details

  • Accommodates 7' door .
  • Door thickness- 1-3/4"
  • Lever trim function, key locks and unlocks lever
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 9827L-26D-3

Von Duprin 9827L surface mounted vertical rod device with lever trim. Series 98/99 exit devices with modern touchbar styling for heavy traffic applications. Device with lever trim function, key locks and unlocks lever.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order item with 4 week lead time.
  • Device with lever trim function, key locks and unlocks lever
  • The 996L Breakaway™ trim has become the standard lever trim offering on the 98L/99L series devices.
    The Breakaway™ design is especially effective in areas where vandalism to door hardware is a problem.
  • Rim cylinder for lever is not included
  • Vertical Rods-1 piece top rod accommodates 7’ door .
  • Device Functions- device ships EO/DT/NL/TP or L, field selectable.
  • For all types of single or double doors.

More Info

  • Strikes Top - 299 – Dull black finish, Bottom – 248L4 & 304L - unfinished
  • Hex key dogging standard
  • Latch Bolt -  Deadlocking Anti-friction Top & Bottom Bolt, 5/8" throw
  • Covers stock hollow metal doors with 86 or 161 cutouts
  • Non-handed except when the following device options are used:
    SD (Special Dogging), or SS (Signal Switch).
  • UL listed for Panic Exit Hardware.
  • Devices are ANSI A156.3 – 2001 Grade 1.
  • Door thickness- 1-3/4" with standard centerlines
  • Device Centerline from Finished Floor 39-5/8"
  • Bottom rod length is 31-1/4"
  • Door Undercut 1/4"
  • Center Case Dimensions 8" x 2-3/4" x 2-3/8"
  • Top & Bottom Latch Case 4-1/2" x 2-1/8" x 1-1/2"
  • Projection -Pushbar Neutral, 3-13/16" Pushbar Depressed, 3-1/16"
