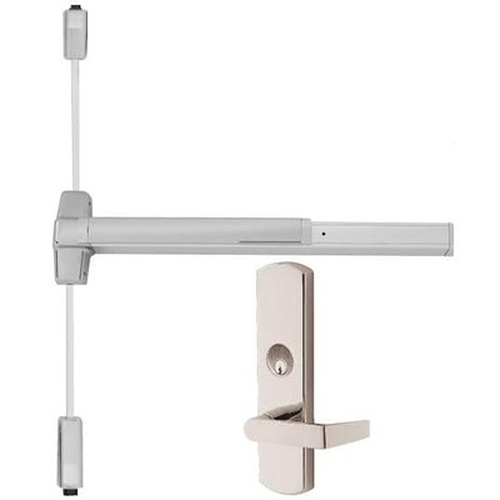

Von Duprin 9827L-US32D-AM

Speial Order Surface Mounted Vertical Rod Device with Lever Trim

Quick Product Details

  • Vertical Rod Exit Device
  • With Lever Trim
  • Surface Mounted
  • Heavy Duty
  • US32D-AM, Anti-Microbial finish
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 9827L-US32D-AM

Choose Options Below

This Von Duprin 9827L is a handed, surface mounted, vertical rod exit device and lever trim. Series 98/99 exit devices with modern touchbar styling for heavy traffic applications. Device with keyed lever trim. With AM option,Anti-Microbial finish.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $1,897.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$12.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $13.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$13.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview

 Special order non stock item with 4 week lead time
Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for fire exit hardware
  • 3 year Limited warranty

Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed

Product at A Glance

  • Covers stock hollow metal doors with 86 or 161 cutouts
  • Mortise cylinder is not included
Door Undercut 1/4"
Style Vertical Rod exit device
Grade Heavy duty
Mounting Surface mounted
Trim Lever Trim:
- Key locks and unlocks lever
Door Thickness 1-3/4" and 2-1/4" with standard centerlines
Door Height 7' (standard)
Dogging Feature Hex key dogging standard on non fire-rated devices
Strike - Top: 299 - dull black finish
- Bottom: 248L4 & 304L - unfinished
Latch Bolt Deadlocking, anti-friction top and bottom bolt
Throw 5/8"
Top Rod Length 34-15/16"
Bottom Rod Length 31-1/4"
Projection - Pushbar neutral: 3-13/16"
- Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device 39-5/8"
Center Case Dimensions 8" x 2-3/4" x 2-3/8"
Top and Bottom Latch Case 4-1/2" x 2-1/8" x 1-1/2"
