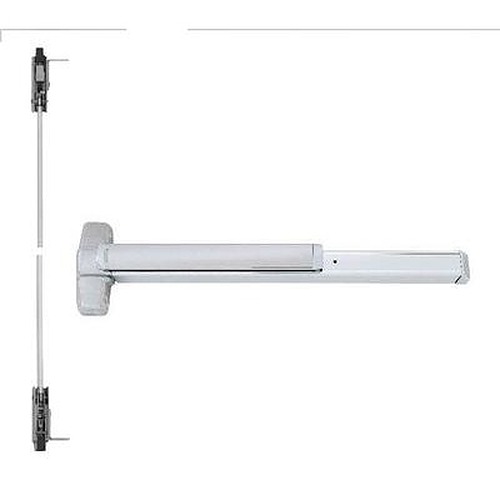

Von Duprin 9848EO-3FT-626

Special Order Concealed Vertical Rod Exit Device

Quick Product Details

  • Vertical Rod Exit Device for Metal Doors
  • Exit-Only Function
  • Concealed Mounted
  • Heavy Duty
  • 3' - Fits Doors 2'4" to 3' Wide

or for better pricing

Price: $1,716.00 /each
Special Order non-stock item Requires 4 week lead time

SKU: 9848EO-3FT-626

Choose Options Below

This Von Duprin 9848EO is a concealed mount, exit only vertical rod exit device. It is non-handed and supplied standard with hex key dogging. This product is designed to fit doors that are 1-3/4" to 2-1/4" thick in heavy duty applications.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $1,716.00

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Overview


Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

Product at A Glance

  • For use on single and double doors
Style Vertical Rod Exit Device
Grade Heavy duty
Mounting Concealed mount
Trim Exit Only Function - no trim included
Handing Non-handed
Door Thickness 1-3/4" to 2-1/4"
Dogging Feature Hex key dogging standard
Strike - Top: 338 - unfinished
- Bottom: 385A - unfinished
Latch Bolt Deadlocking top and bottom bolt
Throw 5/8"
Top Rod Length Adjustable from 6'8" to 8'4"
Bottom Rod Length Adjustable from 35-5/8" to 49-5/8"
Door Undercut 1/4"
Device Length 3' - fits doors 2'4" to 3' wide
Center Case Dimensions 8" x 2-3/4" x 2-3/8"
Top and Bottom Latch Case 4-1/2" x 2-1/8" x 1-1/2"
