Von Duprin 9848L-3 Ft-626

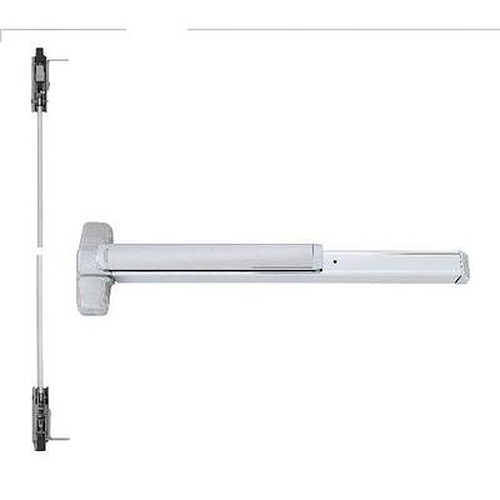

Special Order Concealed Vertical Rod Exit Device with Lever

Quick Product Details

  • Vertical Rod Exit Device for Metal Doors
  • Concealed Mounted
  • Heavy Duty
  • Lever, key Locks/unlocks Lever
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 6 week lead time

SKU: 9848L-3 Ft-626

Choose Options Below

This Von Duprin 9948L is a concealed mount vertical rod exit device for metal doors. It is handed and supplied standard with hex key dogging. This product is designed to fit doors that are 1-3/4" to 2-1/4" thick in heavy duty applications. With Lever.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $2,125.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Satin Chrome - 626 Satin Chrome - 626

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

 Special order non stock item with 4 week lead time.
Quality:
  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for panic exit
  • 3 year Limited warranty

Available Options: Choose Options Above

  • Finish:

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR

Product at A Glance

Style Vertical rod exit device
Grade Heavy duty
Mounting Concealed mount
Trim Lever, key locks/unlock lever, rim cylinder required but not included
Handing Handed for LHR and RHR doors
Door Thickness 1-3/4" to 2-1/4"
Dogging Feature Hex key dogging standard
Strike Top: 338 - unfinished
- Bottom: 385A - unfinished
Latch Bolt Deadlocking top and bottom bolt
Top Rod Length Adjustable from 6'8" to 8'4"
Bottom Rod Length Adjustable from 35-5/8" to 49-5/8"
Door Undercut 3/4" maximum
Device Length 3' - fits doors 2'4" to 3' wide
Center Case Dimensions 8" x 2-3/4" x 2-3/8"
Top and Bottom Latch Case 4-1/2" x 1-1/8" x 1-1/2"
