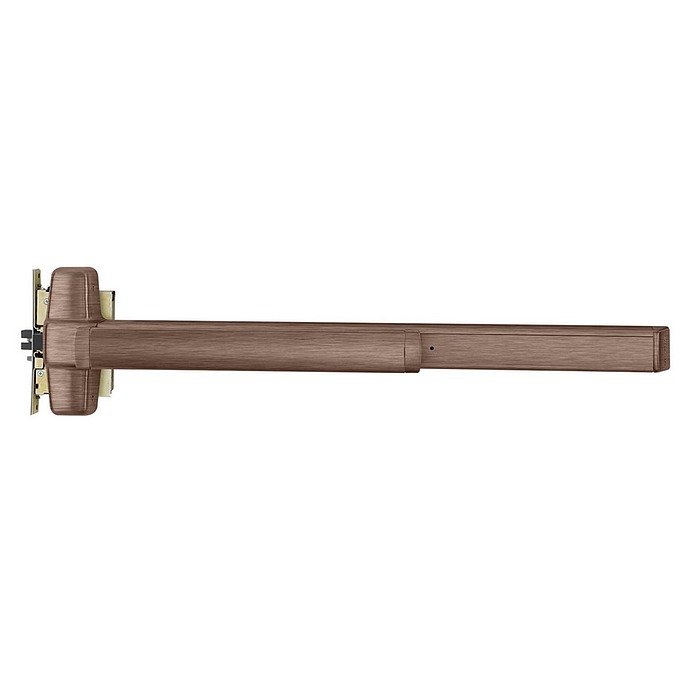

Von Duprin 9875L-613-4FT-HAND-06

Special Order Panic Mortise Lock Exit Device

Quick Product Details

Mortise Lock Exit Device
996L Lever Trim Included
Fire Rated

Price: $2,625.00 /each

Special Order non-stock item Requires 6 week lead time

SKU: 9875L-613-4FT-HAND-06

Choose Options Below

This Von Duprin 9975L is a panic mortise lock exit device for all types of single doors up to 4' x 10' and double doors up to 8' x 10'. Supplied in 613 Oil Rubbed Bronze Finish with 06 style lever on the exterior.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

or for better pricing

Price: $2,625.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

613 - Oil Rubbed Bronze

Choose Rail Size:

4 FT

Help Me Decide

3’ rail for 28” to 36”’ door width
4’ rail for 34” to 48” door width

Choose Handing:

Left Hand Reverse - LHR

Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.

1 Choose Finish:
2 Choose Rail Size:
3 Choose Handing:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Non-Stock Special Order with 4-6 week lead time
Quality:

Meets ANSI 156.3-2001 Grade 1 standards
3 year Limited warranty

Special Orders Available:

More unlisted finishes available
Available with RX, LX or SS switches
Available with electric latch retraction

Available Options: Choose Options Above

Finish:
- 613 - Oil Rubbed Bronze
Rail Size:
Rail Size
3’ rail for 28” to 36”’ door width

4’ rail for 34” to 48” door width
- 4 FT
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

• While you are standing outside of the room facing the door, the hinges are on your right side.
- Left Hand Reverse - LHR
- Right Hand Reverse - RHR

Product at A Glance

For all types of single doors up to 4´ x 10´ or double doors up to 8´ x 10´
Includes 06 Standard Lever. For alternate levers, please request a special order (additional costs my apply)
Fits stock hollow metal doors with 86 cutout
The 7500 Mortise lock is equipped with a 3/4” anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
Finished in Oil Rubbed Bronze finish

Style	Fire-Rated Mortise exit device
Function	Lever trim included - 996L
Handing	Handed Device, specify LHR or RHR
Lever Design	06 (Standard)
Door Thickness	1-3/4" Standard
Dogging Feature	Hex key dogging standard
Strike	#575 - dull black finish
Projection	- Pushbar neutral: 3-13/16" - Pushbar depressed: 3-1/16"
Measurement from Finished Floor to Centerline of Device	39-5/8"
Center Case Dimensions	8" x 2-3/4" x 2-3/8"
Mechanism Case Dimensions	2-1/4" x 2-1/4"
Stile	Minimum width 4-3/4"
