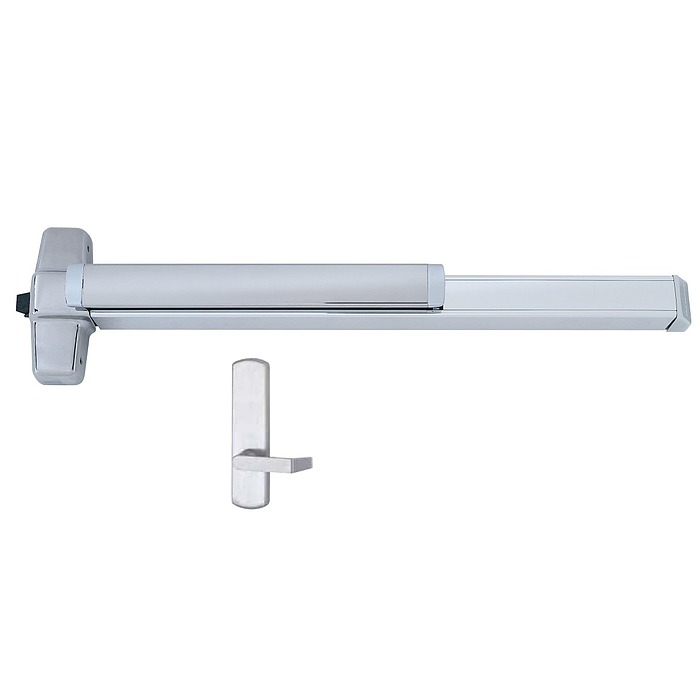

Von Duprin 98L-DT-US26D

Special order item with 3 week lead time

• Satin chrome finish,US26D
• With dummy lever, pull when dogged.
• For all types of single and double doors with mullion
• For doors 1-3/4" to 2-1/4" thick
• Covers stock hollow metal doors with 86 or 161 cutouts on single doors
• Strike- 299 – Dull Black.
• Dogging Feature- Hex key dogging standard.
• Latch Bolt-Deadlocking 3/4“ throw.

Available Options: Choose Options Above

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.





  Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse (LHR)
  • Right Hand Reverse (RHR)

• Rail Size:

  Rail Size

  ×

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

  Close
  • 3 FT
  • 4 FT
