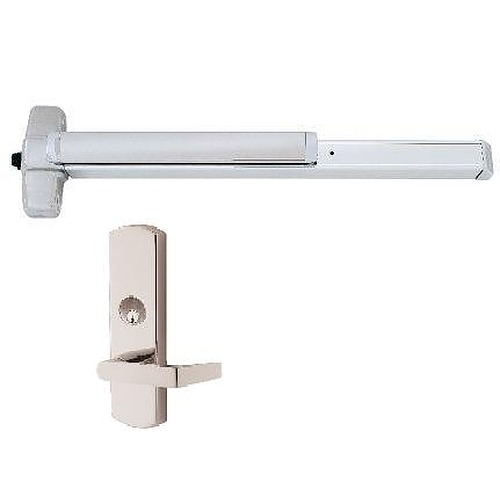

Von Duprin 98L-F-2-32D

Special Order Fire Rated Rim Exit Device with Double Cylinder Option

Quick Product Details

  • UL Fire Rated Rim Exit Device
  • Double Cylinder Option
  • Heavy Duty
SKU: 98L-F-2-32D

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

Choose Options Below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: Call for Pricing 1-866-749-7661

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand Reverse - LHR
Right Hand Reverse - RHR

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.

​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Rail Size:

3 FT
4 FT +$11.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Overview

Special order non stock item with 4 week lead time.
  • Double cylinder features an inside key cylinder which locks or unlocks the outside trim and an outside key cylinder which retracts the latch bolt only.
  • requires two rim type cylinders.
  • 98 Series features smooth mechanism.
  • Dogging Feature- Hex key dogging standard.
  • Latch Bolt-Deadlocking 3/4“ throw.
  • Satin stainless steel finish-US32D



Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse - LHR
    • Right Hand Reverse - RHR
  • Rail Size: info icon

    • 3 FT
    • 4 FT

Product at A Glance

  • Double cylinder option.
  • UL 3 hour Fire rated.
  • For all types of single and double doors with mullion
  • Quiet operation
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors
Style Rim exit device
Grade Heavy duty
Dogging Feature Hex key dogging standard
Strike 299 (dull black)
Latch Bolt Deadlocking - 3/4" throw

More Info

  • Meets ANSI 156.3-2001 Grade 1 standards
  • UL listed for fire exit hardware.
  • Center Case Dimensions- 8"x 2-3/4”x 2-3/8"
  • Mechanism Case Dimensions- 2-1/4" x 2-1/4"
  • Projection Pushbar Neutral – 3-13/16", Pushbar Depressed – 3-1/16"
