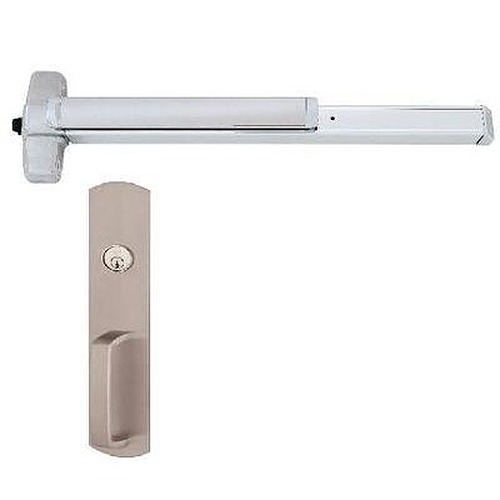

Von Duprin 98NL-WH-626

Special Order 98 series Rim Exit Device with Night Latch Pull Trim

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 98NL-WH-626

Choose Options Below

Von Duprin 98NL, rim exit device with 990NL night latch trim. Night Latch function- key retracts latchbolt.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

or for better pricing
Price: $1,468.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Rail Size:

3 FT
4 FT +$15.00

Help Me Decide

  • 3’ rail for 28” to 36”’ door width
  • 4’ rail for 34” to 48” door width

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $17.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$17.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview

Special order non stock item with 12 week lead time.
  • Rim exit device with 990NL night latch function trim
  • WH-weep holes,Weep holes are ideal for devices that are mounted to exterior doors that can be exposed to rain and other elements.
  • 626 Satin chrome finish.
  • Rim cylinder not included for night latch trim.
  • For all types of single and double doors with mullion.
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
  • Strike- 299 – Dull Black.
  • Dogging Feature- Hex key dogging standard.
  • Latch Bolt-Deadlocking 3/4“ throw.

Available Options: Choose Options Above

  • Rail Size: info icon

    • 3 FT
    • 4 FT
  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed

More Info

  • UL listed for Panic Exit
  • ANSI A156.3 – 2001 Grade 1.
  • Device Centerline from Finished Floor – 39-13/16”, 39-11/16” with mullion
  • Center Case Dimensions- 8"x 2-3/4”x 2-3/8"
  • Mechanism Case Dimensions- 2-1/4" x 2-1/4"
  • Projection Pushbar Neutral – 3-13/16", Pushbar Depressed – 3-1/16"
