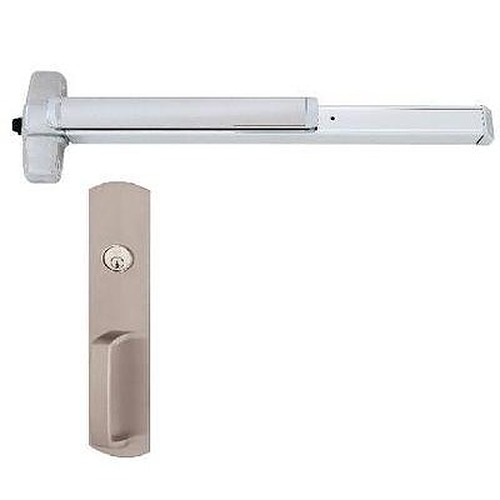

Von Duprin 98NL-WH-630-3

Special Order 98 series Rim Exit Device with Night Latch Pull Trim and Weep Holes

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 98NL-WH-630-3

Choose Options Below

Von Duprin 98NL, rim exit device with 990NL night latch trim. Night Latch function- key retracts latchbolt. With weep holes.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Cylinder Rim:

Rim Cylinder Schlage C Keyway Satin Chrome (QH200) + $13.00 Recommended Rim Cylinder Schlage C Keyway Satin Chrome (QH200) +$13.00
No Rim Cylinder Needed

Help Me Decide

  • Rim cylinder includes 2 keys.

Overview

Special order non stock item with 4 week lead time
  • Rim exit device with 990NL night latch function trim
  • With weep holes. Weep holes are ideal for devices that are mounted to exterior doors that can be exposed to rain and other elements.
  • For 3 foot wide opening.
  • Satin stainless steel finish.
  • Rim cylinder required for night latch trim but not included .
  • For all types of single and double doors with mullion.
  • Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
  • Strike- 299 – Dull Black.
  • Dogging Feature- Hex key dogging standard.
  • Latch Bolt-Deadlocking 3/4“ throw.

Available Options: Choose Options Above

  • Cylinder Rim: info icon

    • Rim Cylinder Schlage C Keyway Satin Chrome (QH200)
    • No Rim Cylinder Needed

More Info

  • UL listed for Panic Exit
  • ANSI A156.3 – 2001 Grade 1.
  • Device Centerline from Finished Floor – 39-13/16”, 39-11/16” with mullion
  • Center Case Dimensions- 8"x 2-3/4”x 2-3/8"
  • Mechanism Case Dimensions- 2-1/4" x 2-1/4"
  • Projection Pushbar Neutral – 3-13/16", Pushbar Depressed – 3-1/16"
